Which Foamcore Mouldings Meet Moisture Resistant Specs?
Polymer-modified cementitious coated foamcore mouldings with high-density EPS cores and alkali-resistant fiberglass mesh reinforcement meet or exceed moisture resistant specifications for both interior and exterior architectural applications.
Introduction
Polymer-modified cementitious coated foamcore mouldings with high-density EPS cores and alkali-resistant fiberglass mesh reinforcement meet or exceed moisture resistant specifications for both interior and exterior architectural applications. These factory-coated composite systems deliver measurable protection against water absorption, vapor transmission, freeze/thaw cycling, and biological growth - outperforming traditional plaster, wood, and MDF alternatives in virtually every moisture-related metric.
This guide covers the specific core compositions, coating systems, and testing standards that define moisture resistance in foamcore mouldings. It is written for architects, builders, and contractors specifying material for moisture-critical projects - from residential bathrooms to commercial exterior applications in harsh climates. Moisture-resistant foamcore mouldings have specific engineering specifications across core composition and performance that directly determine long-term durability.
What Are Cement Coated Moldings?
Cement coated moldings pair an EPS core with a polymer-modified cementitious coating applied in a factory environment over alkali-resistant fiberglass mesh, under controlled temperature and humidity.
Manufacturing Process
Precision CNC fabrication cuts complex profiles, deep relief, curves, and tight architectural details before coating is applied. Factory application is intended to produce uniform thickness, complete mesh encapsulation, and consistent curing, with quality checks for near-zero joint expansion, moisture resistance, and freeze-thaw stability. Curved profiles for architectural openings such as arches, columns, and windows can be manufactured using maintenance-free exterior moulding systems.
Performance Characteristics
- 100% moisture-proof construction — the inorganic shell plus moisture-inert EPS core is designed to prevent water infiltration.
- Impact resistance — ~119% cumulative energy absorption (Monash research)
- Freeze-thaw stability — ~90%+ compressive strength retention post-cycling
- Detail retention — sharp edges on quoins, keystones, and cornice profiles are intended to stay crisp without coating distortion.
Cement coated foam is designed to visually resemble stone while weighing substantially less than wood.
What Makes Foamcore Mouldings Moisture Resistant?
Moisture resistance in architectural mouldings encompasses water absorption rate, vapor permeance, dimensional stability, freeze/thaw durability, and resistance to biological growth. Foamcore mouldings achieve this through a composite system: an engineered EPS core surrounded by a factory-applied protective coating reinforced with embedded mesh. Each layer contributes distinct moisture protection properties governed by ASTM standards.
EPS Core Properties
- Foam core typically high-density EPS (ASTM C578 Type I or II)
- Closed-cell polystyrene resists water absorption
- Density around 1.0 lb/ft³; lightweight and dimensionally stable
- Water absorption approx. 3–4% by volume (ASTM C272 immersion test)
- Non-porous, does not absorb ambient moisture
- Vapor permeance 2.5 to 5.0 perms per ASTM E96 (varies by density/type)
- Dimensional stability <1.5% linear change under humidity/temperature fluctuations
- Linear thermal expansion coefficient critical for warping prevention
- Closed-cell foam prevents water ingress, rot, mold growth
Protective Coating System
- Polymer-modified cementitious coating is primary moisture barrier
- Factory-applied at controlled thickness (~4.7625 mm / 0.1875")
- Coating fully encapsulates all foam surfaces (front, back, edges)
- Alkali-resistant fiberglass mesh (2.6 oz/yd², 0.015" thick) embedded for crack and impact resistance
- Mesh maintains coating integrity under thermal and mechanical stress
- Reinforced coatings ensure durable, continuous moisture barrier
- Full coating coverage essential; incomplete edges/back common failure points
Which Specific Foamcore Moulding Types Meet Moisture Resistant Specs?
Mouldex Composites offers a full range of composite exterior and interior moulding systems engineered to meet these moisture resistant specifications while outperforming traditional plaster, wood, and concrete trim.
Exterior Moldings

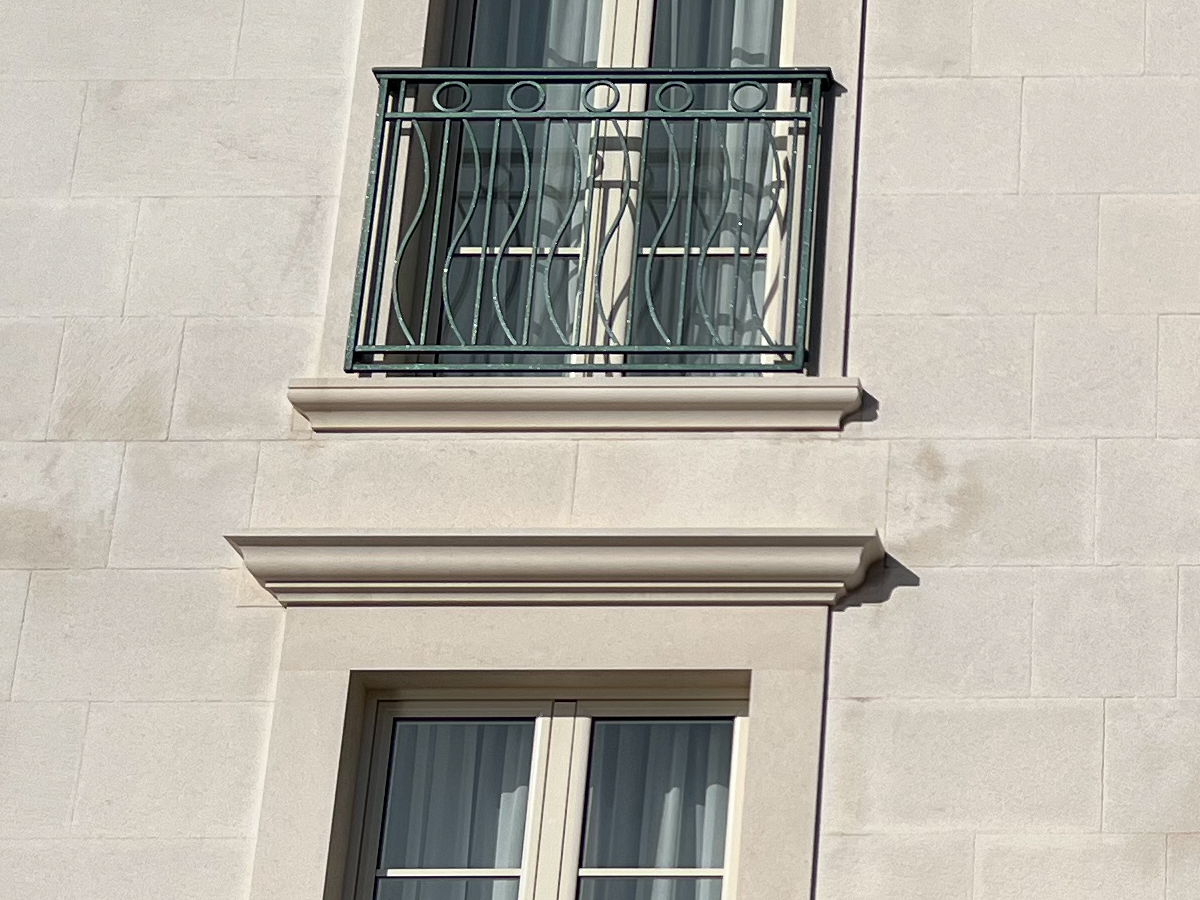

Exterior cornices, window trim, door surrounds, and decorative architectural elements face the most demanding moisture conditions. Foamcore mouldings resist freeze/thaw and UV exposure in these outdoor use environments. Mouldex Exterior Moulding Systems use cement-encapsulated EPS cores to withstand outdoor elements without rotting - a critical advantage over wood in exterior applications.
Full encapsulation with polymer-modified cementitious coating is mandatory for these profiles. Mouldex composites are 100% moisture-inert materials, and factory-coated exterior mouldings retain ≥90% compressive strength after freeze/thaw cycling. Precision CNC fabrication ensures near-zero joint expansion under humidity shifts, reducing water infiltration at seams. Moisture resistance should not compromise fire safety in architectural applications - foamcore mouldings can achieve ASTM E84 Class A fire ratings while maintaining full moisture protection.
Interior Moldings

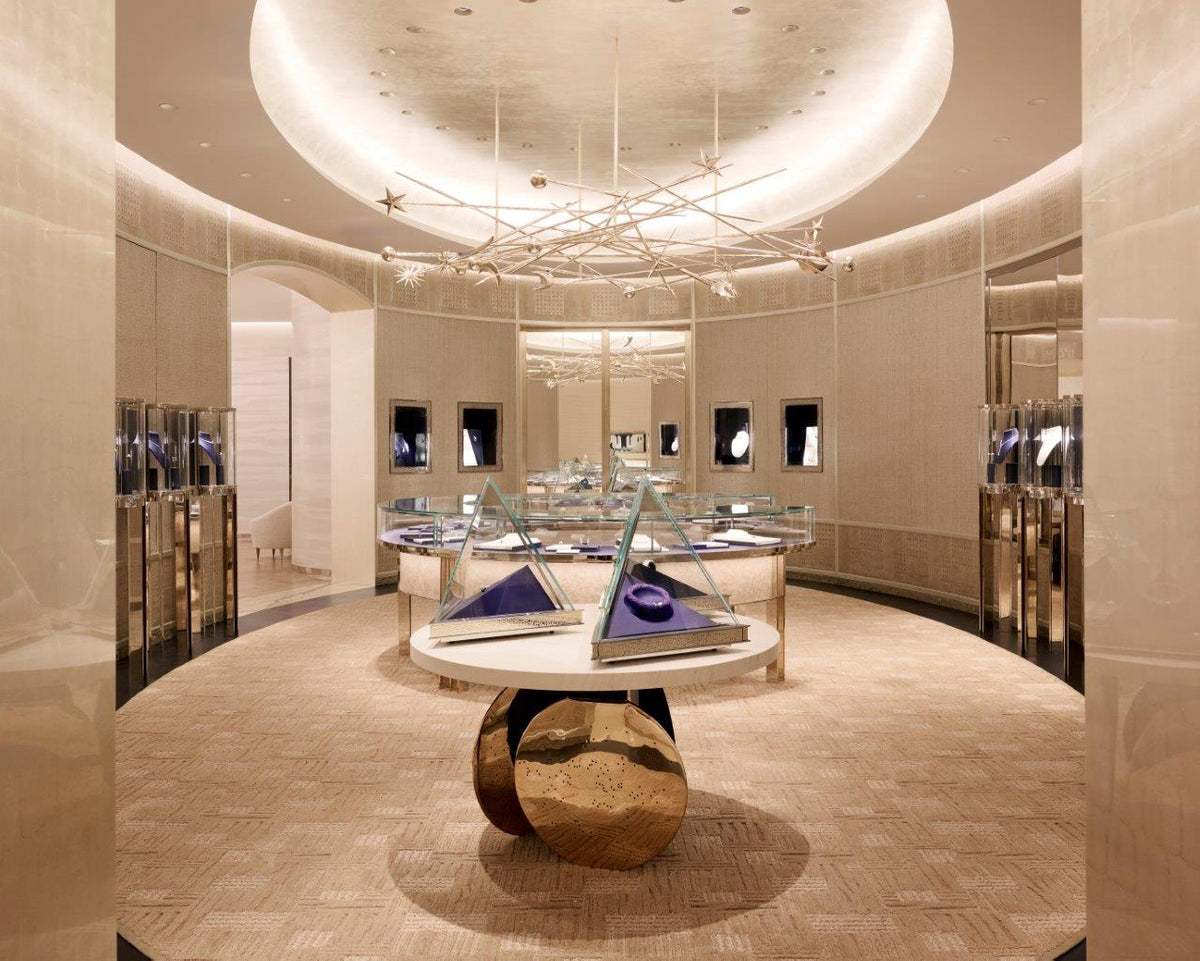

Bathrooms, kitchens, spas, and commercial hospitality spaces present sustained high humidity without the freeze/thaw and UV exposure challenges of exterior use. Interior crown moldings, baseboards, and wall panels in these spaces benefit from the same composite construction. Moisture-resistant foamcore mouldings replace traditional wood or plaster trim in high-humidity areas where conventional materials swell, warp, or support mold colonization, and maintenance free exterior & interior mouldings extend this performance across the entire building envelope.
Polyurethane mouldings are good for humid interiors like bathrooms and kitchens, but coated EPS composite systems offer broader design flexibility. Lightweight polymers prevent moisture penetration and resist mold colonization - the inert EPS core provides no organic food source for biological growth. Integral biocides in foam treatments help suppress mold spore germination in sustained-humidity environments.
What Are the Moisture Resistance Testing Standards and Performance Data?
Standard Testing Procedures and Results
Moisture resistance claims must be verified against recognized ASTM standards:
- ASTM C272 - Water absorption of core materials by 24-hour total immersion. Premium moisture-resistant mouldings should exhibit a low water absorption rate after immersion: ≤4% for low density Type I, ≤3% for Type II/VIII, ≤2% for higher-density cores
- ASTM E96/E96M - Water vapor transmission rate testing. Water vapor transmission rate should be low in moisture resistant boards. Coated assemblies typically achieve 1–3 perms
- ASTM D570 - Water absorption of coating/polymer components, with coated assemblies showing sub-1% absorption
- ASTM E84 - Surface burning characteristics evaluation to meet building code requirements alongside moisture performance
- ASTM B117 - Salt spray resistance for coastal and marine environment applications
- Freeze/thaw cycling - Structural performance retention of ≥90% compressive strength after accelerated cycling
Performance Comparison Analysis
| Property | Factory-Coated Foamcore | Field-Coated Foam | Wood / MDF | PVC | Fiber Cement |
|---|---|---|---|---|---|
| Water Absorption (24h) | <1–2% (coated assembly) | 3–5% (inconsistent coating) | 15–25% (wood); MDF higher | <0.5% | 8–15% |
| Vapor Permeance | 1–3 perms (coated) | 3–5 perms (variable) | High; degrades with exposure | Very low | Moderate |
| Freeze/Thaw Resistance | ≥90% strength retention | Variable; spalling common | Rot, swell, delaminate | Excellent | Good but heavy |
| UV Exposure Stability | Coating protects core; finish may fade | Poor; uneven degradation | Visible degradation | Yellowing possible | Good |
| Weight | Lightweight | Lightweight | Heavy | Moderate | Very heavy |
| Biological Resistance | No food source; mold-inert | Variable | Supports rot, mold, insects | Inert | Moderate |
| Installation | Nail-less adhesive bonding | Field labor intensive | Mechanical fasteners required | Fasteners or adhesive | Heavy; fasteners required |
Coated EPS mouldings feature an outer protective shell that acts as a waterproof barrier - a key advantage. The smooth surface finish of factory-coated systems can be painted or stained to match any design requirement. Foamcore mouldings are lightweight and durable compared to masonry or fiber cement alternatives, offering easy installation with adhesive systems and lower cost over project lifecycle.
What Common Moisture-Related Challenges Do These Mouldings Address?
Preventing Mold and Mildew Growth
Moisture-inert maintenance free exterior crown mouldings illustrate how properly engineered profiles maintain clean, dry surfaces in demanding climates.
- 100% moisture-proof coating prevents organic growth on surfaces
- Inert EPS core contains no cellulose or organic material, eliminating mold food source
- Suitable for residential and commercial humid spaces like bathrooms, kitchens, ceilings
Eliminating Rot and Decay Issues

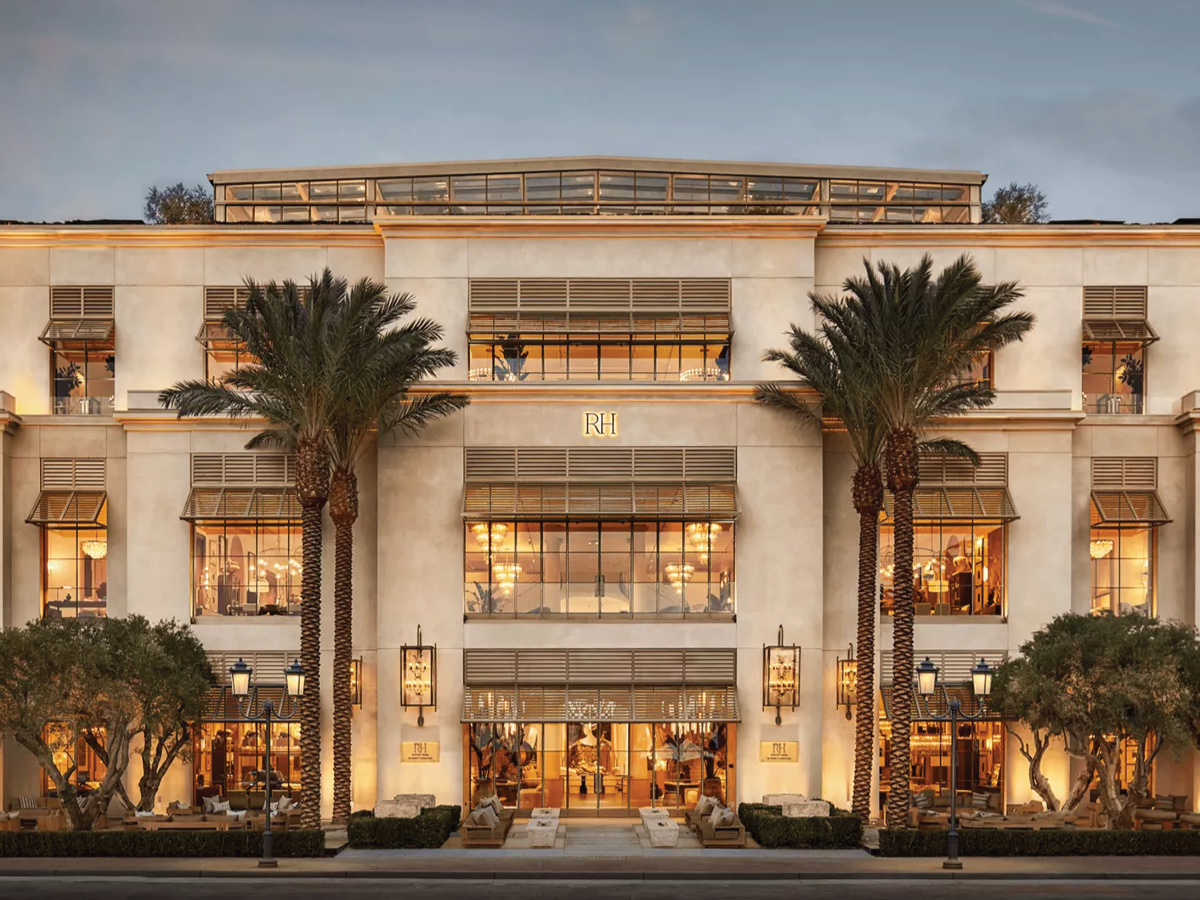

High-performance exterior middle band mouldings show how continuous, cement-coated bands can bridge floor lines and transitions without introducing rot-prone joints.
- Engineered to prevent warping and rotting in humid environments
- Non-organic composite construction eliminates wood rot concerns
- Dimensional stability prevents joint opening and water infiltration
- Near-zero joint expansion under humidity shifts via precision CNC fabrication
Avoiding Installation-Related Moisture Problems
Lightweight exterior pilasters and architectural accents benefit from nail-less adhesive installation that preserves the integrity of the moisture barrier.
- Nail-less adhesive installation prevents coating punctures and moisture entry
- Foam crown mouldings install with adhesive, no nails needed
- Installation requires minimal equipment and manpower
- Standard woodworking tools suffice for cutting
- Tough outer shell protects against dents and moisture long-term, as seen in Mouldex’s Norton 18 inch exterior crown moulding
- High-density polyurethane mouldings resist moisture and mildew in some interiors, but advanced cement-coated exterior crown mouldings deliver superior long-term performance in many applications
- Substrate moisture >4–5% can cause adhesive failure; verify before bonding
Conclusion and Next Steps
Factory-coated, polymer-modified cementitious foamcore mouldings with EPS cores and alkali-resistant fiberglass mesh meet the most demanding moisture resistant specifications across exterior and interior applications. They resist moisture, rot, and UV exposure while maintaining structural performance, flexural strength, and corrosion resistance over decades of service. Foamcore mouldings are customizable in various finishes and suitable for any architectural accents - from exterior column wraps and the broader collections of architectural mouldings and trims to interior crown mouldings and wall panels.
Related topics worth exploring: the different types of exterior moulding materials, sealing and finish coat selection for coastal environments, and drainage plane detailing behind exterior architectural elements.
Frequently Asked Questions
What specific moisture resistance rating do Mouldex Composites mouldings achieve?
Factory-coated foamcore mouldings with polymer-modified cementitious coating achieve sub-1–2% water absorption as a coated assembly, with vapor permeance of 1–3 perms. The EPS core alone meets ASTM C578 limits of ≤3–4% water absorption by volume. Mouldex Composites mouldings resist moisture and do not rot. The self extinguishing properties of EPS also contribute to safety alongside moisture protection.
Can polymer-coated foamcore mouldings be used in direct contact with water?
Standard polymer-coated foamcore mouldings perform best in weather-exposed and high-humidity applications rather than continuous submersion. Mouldex Composites mouldings can withstand various weather conditions but are not designed for permanent immersion without specialized sealing.
How are foamcore cement coated moldings made?
Foamcore cement coated mouldings are manufactured using a precision process that begins with a high-density EPS foam core, which is CNC-cut to exact architectural specifications. This core is then factory-coated with a polymer-modified cementitious coating reinforced with alkali-resistant fiberglass mesh. The coating is applied in multiple layers under controlled conditions to ensure a consistent, durable, and moisture-resistant surface that fully encapsulates the foam core. This process results in a lightweight yet strong moulding that resists moisture, rot, and UV exposure while maintaining dimensional stability.
For a detailed visual overview of the manufacturing process, watch the Mouldex Composites segment on The Discovery Channel's "How It's Made".
