Every exterior window sill does three jobs at once: it sheds rainwater away from the wall, protects the wall below from moisture, and gives each window a clean visual base on the facade. When a sill fails at any of these, the damage shows up as stained stucco, rotted framing, cracked joints and leaks at the window, often years later and across dozens of openings at once. This guide explains why window sills fail, how to specify one that won't, and how the main sill types and materials compare, whether you're detailing a single custom house or hundreds of openings on a multi-family or hotel project.
The short version: Most sill failures come down to six things: too little slope, no drip edge, too little projection, water getting in at joints and ends, materials that absorb water or move, and poor integration with the wall. Specify a sloped sill with a drip edge that projects past the cladding, flash it properly, and choose a material that won't rot or move. Cement-coated foam sills (also called composite sills) combine light handling, a moisture-inert core and near-zero joint expansion, and are primed and painted on site. Browse Mouldex exterior window sills.
Why Window Sills Fail
- Too flat. A sill without enough slope lets water sit against the window frame and seep into joints. Specify: a top surface that slopes clearly away from the window.
- No drip edge. Without a groove or nose underneath, water clings to the underside and runs back to the wall, staining stucco and soaking the wall below. Specify: a drip edge or drip groove under the front nose.
- Too little projection. A sill that sits nearly flush drops water straight onto the wall below. Specify: enough projection past the cladding to throw water clear.
- Water at joints and ends. Open joints, missing end dams and no sill pan let water get behind the sill and into the wall. Specify: sill pan flashing with end dams, compatible sealant at transitions, and a material with low movement, so joints stay closed.
- Materials that absorb water or move. Wood rots when its finish fails, PVC expands in the sun and opens joints on long runs, and heavy precast or stone needs anchoring and can crack or stain. Specify: a moisture-inert material with near-zero joint expansion, light enough to install without extra structure.
- Poor integration with the wall. A sill installed over the weather barrier the wrong way, or without regard for the drainage plane, sends water into the wall instead of out. Specify: flashing and weather barrier details first, then the sill, following the wall system's requirements for stucco, EIFS, brick or siding.
What an Exterior Window Sill Does

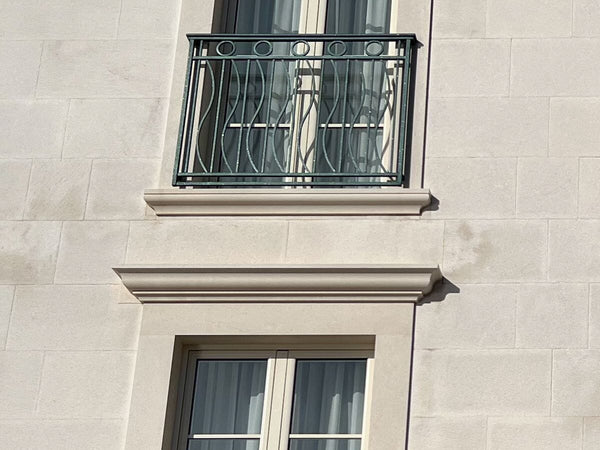

An exterior window sill is the horizontal element at the base of a window opening, on the outside face of the wall. It projects past the wall surface, slopes outward, and usually has a drip edge under its front nose, so water is shed away from the opening before it can reach the wall below.
A few terms are often mixed up:
- Sill: the exterior, water-shedding ledge.
- Sill pan or sub-sill: the concealed flashing beneath the window that drains any water that gets past it.
- Stool: the interior shelf inside the window.
- Trim or casing: the side and head mouldings that frame the window.
On the design side, the sill creates a shadow line and a base under the glass. Its depth, profile and projection change how windows read on a facade, from a thin modern line to a bold classical ledge.
Mouldex exterior window sills are cement-coated foam: an EPS foam core with a polymer-modified cementitious coating reinforced with fiberglass mesh. They're decorative mouldings adhered to the facade and finished with exterior primer and paint, with the look of heavier materials and none of the weight.
Types of Exterior Window Sills
Flat slab sills
The simplest form: a rectangular section with a slight slope across the top. It reads as a low-profile horizontal line under the window and suits modern and minimalist facades. On homes, flat slab sills suit contemporary custom builds, townhomes and renovations where heavy trim is being simplified. On commercial projects (offices in stucco or EIFS, retail centres, schools) they deliver simplicity and cost control. The Ava is an example of this restrained approach.
Sloped and projecting sills
These take the pitch and projection further, to shed water more aggressively. They suit climates with heavy rain or frequent freeze-thaw cycles, such as the northern US, Canada and the Pacific Northwest. On homes, they work well under large picture windows and on upper-floor windows without deep roof overhangs. On hotels, multi-family buildings and multi-storey offices, the extra slope limits water streaking down the stucco or EIFS below.
Nosed or bullnose sills
A rounded front edge softens the transition and creates a pronounced drip edge that throws water clear of the wall, which is especially useful on stucco and EIFS, where streaks show. On traditional homes with stone or brick, a bullnose sill adds a substantial, crafted look. Hotels and mixed-use buildings use bullnose profiles to echo cut stone without its weight. The Kensington is one example.
Profiled and decorative sills
Profiled sills have multiple steps, curves or bevels, often coordinated with cornices and band moldings so the whole facade speaks the same language. Stone sills look luxurious and last, but profiled foam sills can recreate those stone details at a fraction of the weight. They're expected on classical, French country, Mediterranean and heritage homes, and common on boutique hotels, theatres, civic buildings and flagship stores. Mouldex sill profiles are designed to coordinate with its exterior window trim and band molding profiles.
Sills with brackets or corbels
Some sills appear to sit on decorative brackets, corbels or console blocks. Like Mouldex column wraps, these elements are purely decorative: the wall carries the load, not the sill or the brackets. Bracketed sills add depth below the main windows of European- or Tuscan-inspired homes, and add character to restaurant and boutique display windows.
Continuous sills across grouped windows
One horizontal sill running under several adjacent windows ties them together, organizing a bank of windows on a great-room wall, or imposing order across dozens of hotel or apartment openings. With foam mouldings, continuous sills are made from several pieces joined on site, and near-zero joint expansion keeps the seams tight along long runs.
Lug sills vs. slip sills
A lug sill extends past the sides of the opening, with projections (sometimes called ears or horns) that run under or overlap the side trim. A slip sill fits within the opening and stops at the jambs. Lug sills suit traditional, articulated facades; slip sills suit cleaner modern lines. Because Mouldex sills are ordered by the piece and cut to size on site, the same profile can be used either way, depending on the detail.
Residential and Commercial Applications
Custom homes and renovations

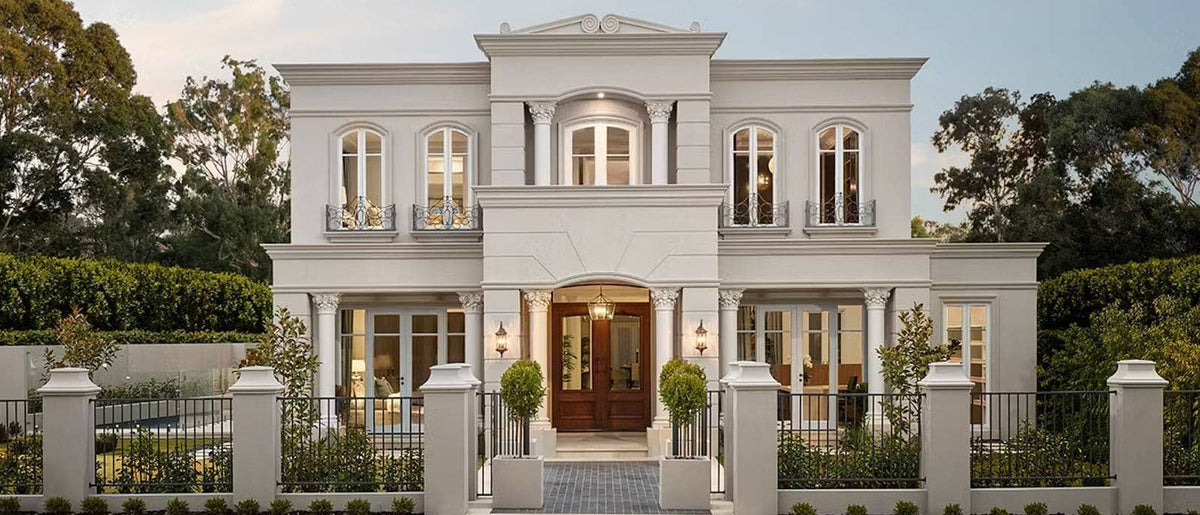

On a house, the sill is one of the most visible trim details at eye level. Deeper profiled or nosed sills strengthen a traditional facade; flat slab sills suit a contemporary one. Matching the sills to the window and door trim, cornice and band molding keeps the whole exterior in proportion. In renovations, rotted wood or crumbling precast sills can be replaced with lighter foam sills, without reinforcing the framing to carry heavy replacements.
Multi-family and mixed-use buildings
Consistency across hundreds of openings is what makes a multi-family facade look deliberate: identical projection, profile and alignment along every floor line, often with continuous sills under grouped windows. Lightweight foam sills are easy to handle from scaffolding without cranes, add little load to the structure, and work with EIFS and stucco. Fire-rated options with a Class A rating (flame spread 25, smoke developed 110) are available on request where the assembly requires them. See exterior mouldings for multi-family and mixed-use buildings.
Hotels, restaurants and retail
Hospitality facades often use profiled, bracketed or continuous sills under guest-room windows and public spaces, while restaurants and stores use sills at display windows and entries as part of the brand's architecture. Consistent profiles across properties and phases help maintain brand standards from one location to the next. See mouldings for hotels, resorts and restaurants.
Offices and institutional buildings
These projects tend toward restrained choices: flat slab or low sloped sills, paired with subtle band moldings, aligned with spandrels or sunshades for a clean horizontal grid. Owners care about durability and upkeep, so a moisture-inert sill that's primed and painted like the rest of the facade fits well.
Exterior Window Sill Materials Compared
| Material | Weight | Moisture | Movement | Upkeep |
|---|---|---|---|---|
| Wood | Moderate to heavy | Absorbs water; can swell and rot if the finish fails | Moves with moisture and temperature; joints open | Regular painting or sealing |
| PVC | Light | Doesn't rot or absorb water | Higher thermal expansion; long runs in sun move more; joints need gaps | Low; can discolour if unpainted |
| Precast concrete or natural stone | Heavy; often needs anchoring and lifting equipment | Durable; some stone is porous unless sealed | Minimal, but joints must allow for movement | Durable; chips and cracks are harder to repair |
| Cement-coated foam (Mouldex) | Light; reduces handling and load on the structure | Moisture-inert EPS core; cementitious coating | Near-zero joint expansion | Primed and painted after installation; repainted like the rest of the facade |
Foam sills work well with stucco and EIFS, and recreate the look of heavier stone or concrete profiles, which matters most on multi-storey facades, where every kilo of weight adds structure and cost. For a broader comparison, read foam trim vs. precast vs. GFRC.
Sizing, Projection and Detailing
These are general guidelines; always follow the project drawings, the window manufacturer's requirements and local codes.
- Projection: the further the sill projects past the wall face, the further it throws water, and the deeper its shadow line. An overhang of around 1 to 2 inches past the cladding is a common target.
- Slope: always slope the top away from the window. A slope of at least about 5 degrees is common practice, with more on exposed elevations.
- Drip edge: a groove or drip under the front nose lets water fall free instead of running back to the wall.
- Alignment with the trim: on traditional facades the sill often sits slightly proud of the side trim to cast a shadow; on modern ones a flush alignment frames the window cleanly. Profiles like the Helen are designed to pair with matching casing.
- Cladding: the sill must respect the drainage plane, the weather barrier and any weep details, especially on multi-family and commercial walls, where trapped water problems multiply across many openings.
Installation Basics
This is an overview, not an installation manual. Always follow the project drawings and the Mouldex installation guidelines. Mouldex sills are ordered by the piece and measured and cut to size on site; Mouldex doesn't sell pre-cut kits.
- Prepare: check the substrate around the opening, confirm the weather barrier and cladding are in place, and make sure surfaces are clean, dry and sound.
- Flash first: install or confirm the sill pan flashing and end dams per the window manufacturer and local code.
- Cut and dry-fit: cut the sill to length on site, allowing for any lug projections or continuous runs, and dry-fit to check the joints, slope and alignment with the window trim.
- Adhere: apply exterior adhesive per the Mouldex guidelines and press the sill into place with full contact, adding mechanical fasteners where the guidelines call for them.
- Treat the joints: align adjacent pieces and finish the joints smooth; on stucco and EIFS, follow the wall system's details for joints and transitions.
- Seal: use a compatible sealant at the sill-to-window joint, end dams and transitions, keeping drainage paths open.
- Prime and paint: after curing, prime and paint the sill with the surrounding mouldings. All Mouldex mouldings are primed and painted after installation.
Frequently Asked Questions
What is the most common reason exterior window sills fail?
Water that isn't shed away from the wall: a sill that's too flat, has no drip edge or doesn't project far enough lets water sit against the window or run back down the wall. Missing sill pan flashing and open joints are the next most common causes.
Which type of sill is best for a stucco or EIFS facade?
Lightweight cement-coated foam sills suit stucco and EIFS because they're adhered to the substrate and finished with the same coatings as the wall. Sloped or nosed sills with a clear drip edge help limit staining below the windows, and continuous sills are common on multi-family EIFS facades.
How do I match sills to existing trim or a new trim package?
Consider the style (modern or traditional), the projection, and how the sill aligns with the side and head trim and any band moldings. Mouldex trim, sill and band profiles are designed to coordinate, and you can send us your elevations for profile recommendations.
Can foam sills be used on multi-storey commercial and multi-family buildings?
Yes, when they're detailed correctly. Their light weight, moisture-inert core and near-zero joint expansion make them practical on larger buildings, and fire-rated options are available on request. Coordinate the details with the project's engineers and wall system designer.
How are Mouldex sills ordered, and how long do they take?
Sills are ordered by the piece and cut to size on site. Project orders have a 15-piece minimum, and lead times are typically 7 to 10 days depending on profile and quantity; custom profiles are typically made within 7 to 10 business days of design approval. Free sample kits ship within 24 hours.
Ready to specify your sills? Browse exterior window sills, order a free sample kit or send us your drawings.
