Window casing is the moulding that frames the sides and top of a window opening, on the inside or outside of a wall. Window trim is the broader term: casing plus the sill (or interior stool), apron, head moulding and any decorative elements. The difference matters when you specify, estimate and install, whether the project is a custom home, a 200-room hotel or a retail storefront. This guide covers interior and exterior casing, styles, sizing, materials, and when to use casing alone versus a full trim surround.
The short version: Casing covers the joint between the window frame and the wall on the sides and top. Window trim is the full package, including the sill and head. Use casing alone for clean modern facades or budget-focused projects; add a sill and head when an elevation needs more presence. Mouldex Composites makes exterior window trim and casing in 28 profiles, ordered by the piece and cut to size on site.
What Window Casing Is
Casing is the finished trim along the two sides (side casings) and the top (head casing) of a window opening. A few related terms often get mixed up with it:
- Sill or stool: the horizontal ledge at the bottom of the window. Outside it's the sill; inside it's usually called the stool.
- Apron: the decorative moulding below an interior stool.
- Brickmould: exterior moulding that covers the gap between the window frame and the cladding.
- Jamb extensions: pieces that bring the window frame flush with a wall that's thicker than the frame.
On the exterior, casing covers the joint between the window frame and the cladding (stucco, EIFS, stone or siding), helps shed water away from the opening, and visually ties windows together across a facade. It has to handle weather, temperature swings, UV and freeze-thaw cycles, and it works together with the window's flashing and sealant to keep water and air out of the wall.
On the interior, casing hides the shims and gaps around the window frame and creates a clean edge between the frame and the drywall or plaster. It's mainly decorative and should match the door casing, baseboards and crown moulding in the room.
Mouldex exterior casing is a cement-coated composite: a lightweight EPS foam core with a polymer-modified cementitious coating reinforced with fiberglass mesh. It's moisture-inert, designed to work with stucco and EIFS walls, and primed and painted after installation.
Mouldex exterior window and door trim: the same profiles frame both windows and doors.
Window Casing Styles
Interior casing styles
- Modern: a flat board with a square edge or a slight bevel, for contemporary condos, offices and minimalist homes.
- Craftsman: a flat board with a thicker head or a back band, for bungalows and transitional interiors.
- Ranch: a smooth, low profile that stays discreet, common in mid-century homes.
- Colonial: layered profiles with classic depth, often with plinth blocks at the base, for formal rooms, boutique hotels and heritage renovations.
- Victorian: fluted casing with rosette corner blocks, for historic restorations and period interiors.

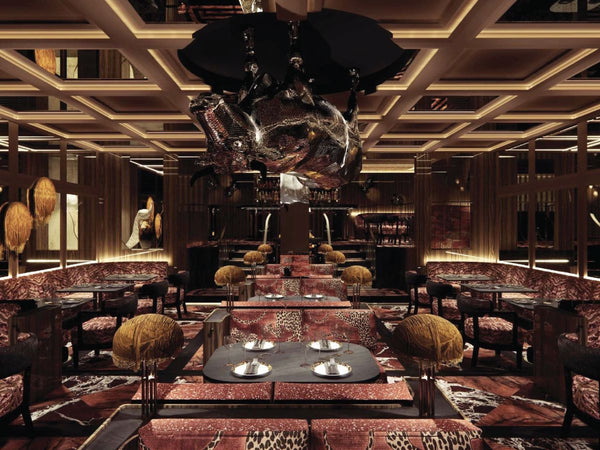

Scale the casing to the room: narrower profiles for compact rooms and corridors, wider and deeper ones for tall ceilings, lobbies and double-height spaces. To complete a room, coordinate the casing with plaster crown mouldings, LED light coves or coffered ceiling beams.
Exterior casing: casing alone or a full surround
A casing-only surround uses side and head casing sealed at the perimeter, with little or no projecting sill or head. It suits modern facades where the glass is the feature, budget-focused multi-family projects, and commercial buildings that need speed and simplicity. Every Mouldex trim profile also works as exterior door trim, so one profile can frame both windows and doors.

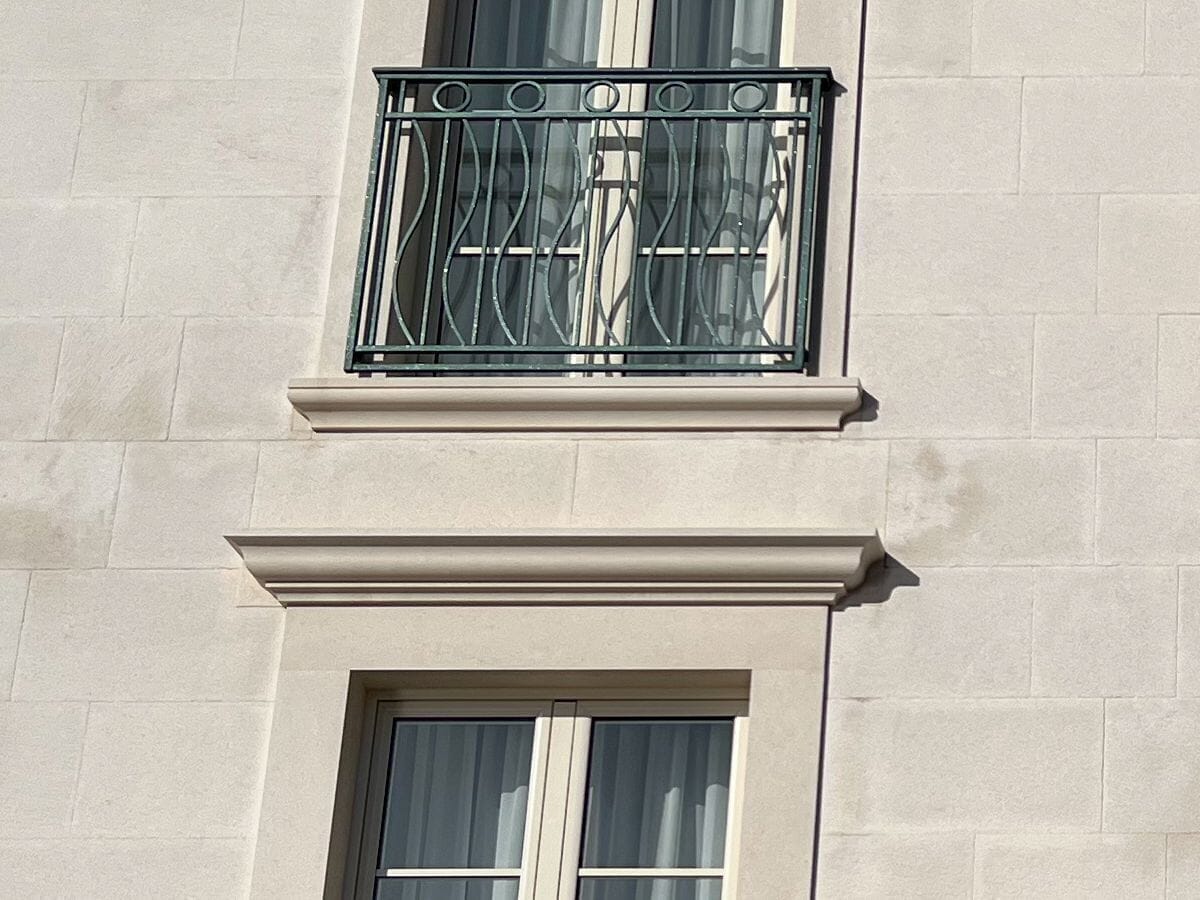

A full trim surround adds a projecting window sill and a heavier head or cornice above the window, sometimes with a keystone or band molding. It's common on custom homes, resorts and statement storefronts, where deeper shadow lines give the building more character. At main entrances, the same trim family is often paired with column wraps, bases and capitals for a complete, coordinated facade.
Mouldex column wraps, bases and capitals: decorative, non-load-bearing covers that pair with window and door trim at entrances.
Common exterior styles include:
- Flat and modern: tight profiles with little relief and clean sealant joints.
- Classical: a head moulding inspired by a classical entablature, often paired with cornice mouldings.
- Mediterranean and stucco: arched heads and softer profiles that blend into stucco walls.
- Mid-rise multi-family: one casing repeated on every floor, with heavier profiles at the base, entrances or top floor for hierarchy.
Sizing and Proportions
- Scale to the opening: narrower casing for small or closely spaced windows; wider profiles for feature windows, storefronts and tall facades where trim has to read from a distance.
- Keep the reveal consistent: use the same casing width on the sides and head of most windows, so shadow lines stay uniform.
- Align across floors: on multi-family and hotel buildings, line up window heads and sills floor to floor. Band molding or belt courses can tie the lines together.
- Balance the sill: match the sill's projection to the casing's thickness so shadow lines look balanced and the drip edge works.
- Save the big profiles for key spots: use larger heads or cornice elements on main entries and front elevations, and standard casing elsewhere.
Residential and Commercial Applications
Single-family homes

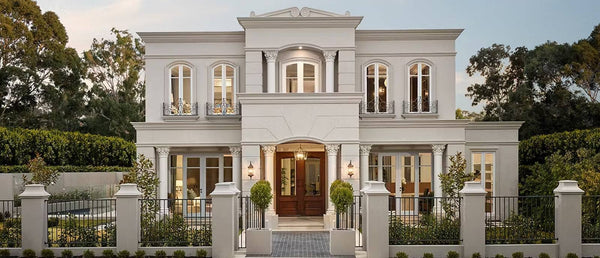

On a new stucco home with large picture windows, exterior composite casing and projecting sills create deep shadow lines that give the facade presence without adding much weight to the wall. On an older brick house getting new windows, new exterior casing and a sill can reshape the facade without touching the masonry, and composite casing won't rot the way wood can in exposed spots. Using the same profile on every elevation keeps the house consistent, and because Mouldex trim is cut on site, it suits the varied window sizes common in renovations.
Multi-family, hotels and mixed-use buildings
When a building has dozens or hundreds of windows, a small family of profiles keeps it orderly and simplifies estimating: standard casing on the middle floors, a heavier profile at the base or retail level, and an enhanced head or cornice at the top. Lightweight composite mouldings can be handled without cranes, and near-zero joint expansion keeps mitres tight across long runs and many floors. Mouldex casing is designed to work with EIFS and stucco. Fire-rated options are available on request with a Class A fire rating (flame spread 25, smoke developed 110) that helps meet ASTM E-84 and UL 263.
Mouldex trim is ordered by the piece and cut to size on site, and project lead times are typically 7 to 10 days depending on profile and quantity.
Retail, office and institutional buildings
Storefronts benefit from strong casing around large display windows and entrances, adding depth without the weight or cost of precast. On offices and institutional buildings with ribbon windows or grouped openings, composite casing adds shadow lines that break up a flat facade. Commercial projects typically also need coordination with curtainwall or storefront framing, fast installation over air and water barriers, and the ability to repeat the same details across several properties.
Window Casing Materials Compared
| Material | Weight | Moisture | Movement | Upkeep |
|---|---|---|---|---|
| Wood | Heavy | Can swell, rot or warp; vulnerable to insects | Noticeable seasonal movement | Regular repainting; replacement in exposed spots |
| PVC | Light | Doesn't rot | Higher thermal expansion, especially dark colours and long runs | Cleaning; repainting where colour fades |
| Precast | Very heavy; needs structural support and often cranes | Durable, but can absorb moisture and stain | Minimal | Sealant upkeep and cleaning |
| Cement-coated composite (Mouldex) | Light | Moisture-inert EPS core with cementitious coating | Near-zero joint expansion | Primed and painted after installation; repainted like any painted exterior trim |
On multi-storey buildings, the weight difference between precast and composite is significant: lighter trim means fewer crane lifts and faster installation. For a deeper comparison, read exterior moulding materials compared.
Installation Basics (Exterior)
- Prepare the wall: make sure the weather barrier and the window's head, sill and jamb flashing are complete before any casing goes up.
- Measure and cut: measure each opening on site, cut the pieces to length with the mitres they need, and dry-fit to check alignment and reveals.
- Adhere and fasten: install with exterior adhesive per the Mouldex installation guidelines, adding mechanical fasteners where the wall system or local practice calls for them.
- Tie into the wall: on stucco and EIFS, follow the wall system's details for joints and transitions.
- Seal: seal the joints between the casing, the window frame and the cladding with a compatible exterior sealant, keeping drainage paths open.
- Prime and paint: all Mouldex mouldings are primed and painted after installation, following the paint manufacturer's recommendations.
Interior casing follows standard finish carpentry: install after drywall or plaster is finished, align mitres with the other interior trim, then paint or stain.
Frequently Asked Questions
Is window casing the same as window trim?
No. Casing is the moulding around the sides and top of the window. Window trim is the full package: casing plus the sill or stool, apron, head and any decorative elements. The terms are sometimes used interchangeably on drawings, so confirm the scope with the design team before estimating.
When should I use casing alone versus a full surround with sill and head?
Casing alone suits modern facades, budget-focused projects and tight urban elevations. Full surrounds suit feature elevations, street-facing facades, hotel entries and storefronts. A custom home might use full surrounds on the front and casing alone on the sides and back; a hotel might save full surrounds for the lobby level and main entrance.
Can composite exterior casing be used on stucco and EIFS?
Yes. Mouldex cement-coated composite mouldings are designed to work with both stucco and EIFS when installed per the guidelines. Details vary by wall system, so coordinate with the wall assembly designer.
How do I size casing on a multi-storey building?
Set one or two standard casing sizes for most openings, then use larger profiles or added elements only at key levels: entrances, the top floor, or street-facing bays. Consistency across floors is what makes an elevation look considered.
How do I get samples or help with a project?
Order a free sample kit, which ships within 24 hours, or send us your elevations or window schedule for help choosing profiles and planning quantities.
