Mouldex stucco molding and stucco foam trim are made for stucco and EIFS, giving architects, builders, contractors and homeowners one flexible product line for window and door surrounds, sills, bands and cornices.
Stucco Molding Summary
Inorganic Composition
Moisture-inert. Won't rot or warp, and less susceptible to cracking.
Versatile Compatibility
Expertly bonds to Brick, Stone, Stucco, Vinyl, and ICF.
Bespoke Customization
Custom profiles, including arches and curves.
Unmatched Finish
Mimics smooth-sanded wood or textured masonry with ease.
Lifetime Stability
Dimensionally stable through freeze-thaw and seasonal swings.
Weight Efficiency
A fraction of the weight of stone. Usually no structural upgrades needed.
Stucco Moldings Collection
Types of Stucco Moulding Profiles
The same stucco foam trim system works across stucco, EIFS, brick, stone, vinyl and ICF, so selection comes down to profile shape, projection and where on the facade the molding will be placed. Every type below is made for exterior exposure and can be specified for new builds or added over existing stucco.
Window and Door Surround Mouldings
Stucco moldings are installed around doors and windows to create defined casings that frame openings and add visual depth. Profiles range from simple flat bands and stepped casings to fluted or decorative options. The Eaton exterior window and door trim and Davenport composite trim lines are popular choices for stucco facades, creating pronounced shadow lines and architectural character with minimal substrate load.
Window Sills
Window sills provide a functional and aesthetic transition at the base of window openings. Mouldex stucco window sills have water-shedding profiles that direct moisture away from the window frame and stucco wall, and they are backed by our warranty. Their lightweight foam core simplifies installation and reduces stress on the substrate compared to concrete or wood sills, and they integrate with the surrounding trim to complete the window surround.

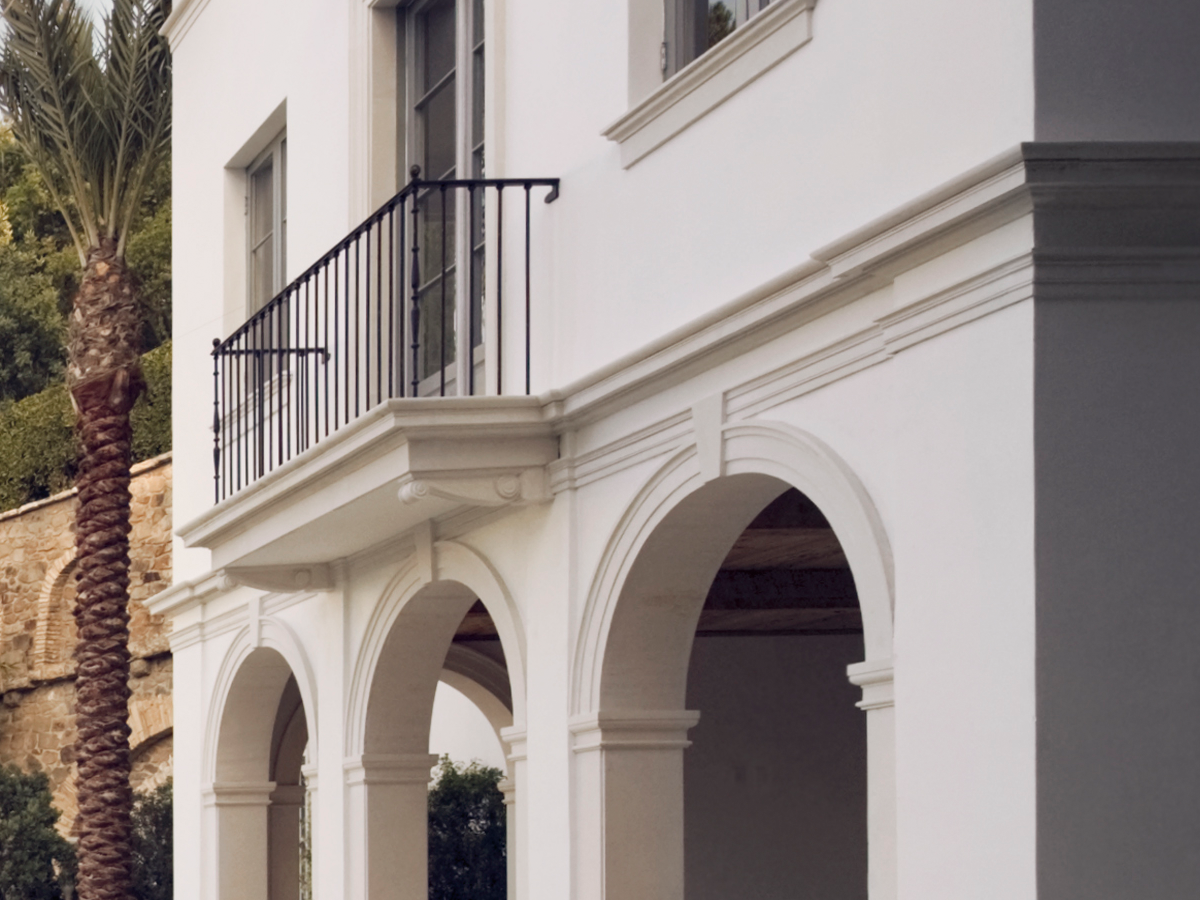

Bands, Belt Courses and Mid-Wall Trims
Continuous horizontal molding is applied as horizontal transitions to separate multi-story facades, align with floor levels or define color changes on tall stucco walls. Common face heights run from about 4 inches to over 10 inches, as seen in profiles like the Fifeshire 10-3/8 inch middle band. Because EPS foam-core moldings weigh just a few pounds per foot, running long uninterrupted bands across an elevation is straightforward without heavy equipment or added structural framing.
Cornices, Parapet Caps and Roofline Mouldings
Cornices and parapet caps finish the top of stucco walls and EIFS parapets, where water management is most critical. Foam core with a cement-based coating avoids the water absorption issues common in traditional stucco-built cornices. Profiles such as the Tuxedo exterior cornice and the full exterior cornice molding collection integrate with coping and flashing details to maintain building envelope performance at the roofline.
Columns, Pilasters and Entry Features
Foam core column wraps, pilaster bases like the Banbury and capitals such as the Avant bring classical or contemporary entry detailing to stucco-clad porticoes. Precast concrete is heavy and often needs lifting equipment, which makes it impractical where structural capacity is limited. Foam trim delivers the same look at a fraction of the weight. Custom profiles for branded hospitality or retail entries are available through the Mouldex Trade Program.
Decorative Accents and Keystone Details
Keystones, brackets, medallions and trim blocks are available as specialty orders, made from the same material system as our standard profiles. Stucco molding emphasizes details like eaves and banding, and it is especially common in Mediterranean and classical architecture. Typical uses include accents over arched stucco windows, at gable ends and under soffits.
MATERIAL COMPARISON: EXTERIOR STUCCO MOLDING OPTIONS
| Criterion | Mouldex Stucco Foam Trim | Pre-Cast Concrete / GFRC | Wood (Cedar, Pine, etc.) | PVC / Cellular PVC |
|---|---|---|---|---|
| Weight | A fraction of the mass of cast concrete trim, light enough for a single installer to carry and set most profiles by hand | Dense and bulky; larger pieces often call for a crane and reinforced backing | Manageable in smaller sizes but gets heavy fast in wide dimensional stock | Fairly light, though oversized profiles start to add noticeable bulk |
| Cost | Less than precast, with lower installation costs since no cranes or reinforcement are needed | Highest material cost, plus lifting equipment and structural support | Low up front, with ongoing paint, sealant and repair costs | Mid-range |
| Maintenance | Low: the cement-based shell won't rot, and only needs an occasional coat of paint to refresh | Sealant joints and surface spalling need periodic attention, and repairs aren't simple given the weight | Needs a fresh coat every few years, plus routine checks for rot and insect entry | Holds up reasonably well but can warp, discolor, or chalk over time and occasionally needs cleaning or a repaint |
| Moisture Resistance | The coating is inorganic and the foam core doesn't retain water, so the trim holds up through repeated freeze-thaw exposure | Unsealed surfaces soak up moisture, which can lead to spalling or white mineral staining over time | End grain and joint lines are moisture entry points, and without diligent upkeep rot sets in | Handles water exposure well, though darker finishes trap heat and can push the material to expand |
| Movement | Dimensionally stable through seasonal swings, so joint lines stay tight | Movement is limited, but joints still need to be detailed correctly to avoid stress cracking | Expands and contracts with humidity and temperature shifts, unpredictably by species and cut | Moves noticeably with heat, so installers need to build in expansion gaps, particularly on south-facing exposures |
| Fire | Class A fire-rated options on request | Non-combustible by nature | Burns readily unless specially treated | Performance depends on the formulation, with some grades self-extinguishing |
| Installation Time | Goes up quickly: cut and mitered on site with standard tools, no cranes or scaffolding-heavy setups, with arches and custom shapes made to order | Labor-intensive: heavy lifting equipment, scaffolding, and careful structural alignment are all part of the process | Requires a skilled hand for cutting, flashing, sealing, and finishing on site | Straightforward with common tools, but expansion allowances have to be planned into every joint |
| Lifecycle Cost | Comes out ahead over the long term thanks to low upkeep, no reinforcement costs, and nothing that needs periodic replacement | Costs more up front and continues to add up through repair work that's difficult to access | Cheaper to buy initially but the ongoing paint, sealant, and rot-section replacement adds up over time | Mid-range to start, low upkeep day-to-day, but warping or fading can eventually force a replacement |
Meet The 5th Category
Builders specifying stucco and EIFS trim have historically chosen from four material families: cellular PVC, polyurethane, fiber cement, or WPC. Mouldex introduces a fifth option, cement-coated expanded polystyrene, made to outperform all four on weight, moisture resistance, and long-term durability against stucco facades.
Stucco Trim Applications
Whether specifying trim into a new stucco build or upgrading an existing flat facade, the approach and detailing differ. The sections below cover what stucco foam trim is, and how the sequencing changes between new construction and renovation work.
Stucco Foam Trim on Stucco Facades
Stucco foam trim, also searched as stucco trim molding, covers the banding, window surrounds, corner profiles and edge details applied over stucco. Mouldex stucco foam trim has an EPS foam core with a cement-based coating reinforced with fiberglass mesh, and it is used on stucco, EIFS, brick, stone, vinyl and ICF. It adds depth to flat stucco walls, lifts curb appeal and suits historic styles as readily as contemporary designs.
New Construction: Integrating Trim into Stucco Design
Planning the molding layout during the design phase ensures alignment with control joints, corners, window heads and sills. A typical sequence runs: framing and sheathing, WRB and lath (or EIFS base coat), install the foam trim, then apply base and finish coats to blend transitions between field stucco and molding edges. Early coordination between architect, stucco contractor and Mouldex helps resolve detailing at flashing transitions and movement joints before they become field problems.
Renovation: Installing Trim Over Existing Stucco
Foam trim is well suited to upgrading flat stucco facades without a full reclad, adding architectural character that transforms a plain elevation. Before installation, check that the existing stucco is sound (no cracks or delamination), investigate any moisture issues, and clean the surface. A typical install involves adhesive beads, mechanical fasteners where needed, back-caulking and sealing edges, then finishing with primer and paint or a texture coat. Because EPS foam-core moldings weigh just a few pounds per foot, they put far less stress on old stucco than heavy precast bands.
What to Look For in Stucco Moulding
Not all stucco trim performs equally. Material and coating directly affect longevity, cracking and maintenance. If you are comparing raw EPS trims with field-applied stucco, precast concrete or cement-coated foam systems, the criteria below will help you find the right fit.
Moisture Resistance and Dimensional Stability
A closed-cell foam core and moisture-inert coating matter on stucco facades exposed to freeze-thaw cycles across North America. Raw EPS wrapped in field-applied stucco often suffers water ingress, cracking and movement that telegraphs through finishes. Mouldex profiles are dimensionally stable through seasonal swings, which reduces joint failure and caulk maintenance. The cement-based coating, reinforced with fiberglass mesh, is less susceptible to cracking, while the EPS core conforms to ASTM C578 Type I for compressive strength and fine detail retention.
EIFS and Stucco System Compatibility
Trims must be compatible with EIFS drainage planes, WRBs and stucco assemblies specified by major manufacturers. Mouldex moldings can be installed over cement board stucco, traditional three-coat stucco and common EIFS systems when detailed correctly. Approved adhesives and sealants should be used, and control joint layout must be respected so the molding does not bridge movement joints or compromise the drainage plane.
Weight and Installation Efficiency
Precast concrete moldings are heavy and often need lifting equipment to install. EPS foam-core moldings weigh just a few pounds per foot, so most profiles can be carried and installed by a two-person crew. Installation uses construction adhesive rather than masonry anchors, with mechanical fasteners where wind loads or projections demand it. That makes foam trim especially practical for retrofit over existing stucco, where the structure was never designed for heavy masonry.
Coating System, Surface Finish and Paintability
The factory-applied cement-based coating (approximately 3/16 inch thick) provides impact resistance and strong adhesion for stucco finish coats or high-quality exterior paints. Profiles arrive in a cement-gray finish, ready for primer and site-applied color matching or contrast against adjacent walls. Primer is required, followed by an exterior latex finish or a textured brush coat. Future repainting follows standard exterior maintenance cycles.
Profile Range and Customization Options
Look for a manufacturer that offers both standard profiles and custom runs. Stucco profiles range from simple flat bands to elaborate cornices and arched elements. Mouldex can adjust profile dimensions, projections and detailing to meet specific architectural drawings for residential, commercial, retail and hospitality projects. CAD details and specifications are available to members of our Trade Program.
How to Choose the Right Stucco Moulding System
You are choosing a material system and installation method suitable for stucco, EIFS, brick, stone, vinyl and ICF, not just a decorative shape. The criteria below turn the technical considerations above into practical selection points for builders, specifiers and homeowners.
Substrate and cladding assembly
Your current or planned cladding (traditional stucco, EIFS, brick veneer, stone, vinyl or ICF) should guide attachment method and profile depth. Mouldex moldings bond to all of these substrates, but detailing varies, particularly around EIFS drainage planes.
Project location and climate
Freeze-thaw cycles, high rainfall or coastal exposure make moisture-inert foam trim preferable to wood or porous precast. The foam core and cement-based coating won't rot or warp in any climate zone.
Scale and architectural intent
Bungalows generally suit moldings under 8 inches, while larger homes can carry moldings over 8 inches. Match projection and profile weight to facade height, window proportions and overall design language.
Construction stage: new build vs retrofit
Integrating trims before stucco application allows mesh embedment and seamless transitions. Adhering foam trim over finished stucco during renovation is equally viable thanks to its light weight and adhesive bonding.
Installation resources and schedule
Standard woodworking tools can cut and miter moldings easily on site. Limited access, tight timelines and small crews all favor lightweight foam trim over precast or masonry alternatives.
Lifecycle cost and maintenance tolerance
EPS foam-core moldings cost less than concrete moldings once material and labor are counted. Over the long term, foam trim typically comes out lower in total cost thanks to fewer crack repairs and less sealant replacement, and it needs little maintenance beyond occasional cleaning or painting.
Stucco Window Trim: Framing Openings with Foam Profiles
Stucco window trim is one of the highest-value upgrades for flat stucco walls. Profiles from lines like the Eaton window trim or the Jackson 6-inch exterior trim can be carried around both windows and doors for a consistent facade language. For a full comparison of foam, wood, PVC and precast around stucco windows, read our guide to the best exterior window trim for stucco homes.
Common Stucco Window Trim Configurations
Simple flat band surrounds with mitered corners suit contemporary designs, while more traditional options include projecting heads, keystones and deeper sills using multiple stacked profiles. Trim can frame joints and add texture and relief around openings.
Profile Sizing
Smaller windows on modest elevations work well with 3 to 4-1/2 inch trims, while larger openings or taller facades benefit from 6 inch or wider casings available in the exterior window molding collection.
Performance Considerations Around Openings
Careful detailing of flashing, drip edges and sealant joints is essential when adding moldings around windows in stucco or EIFS. Trim at openings must not compromise the WRB or trap water behind profiles. Lightweight foam trim minimizes load on window bucks and does not require structural modification in most retrofit scenarios. Coordination with window manufacturer guidelines and local codes is always recommended.
Installation and Technical Support for Stucco Mouldings
Mouldex Composites works as a technical partner, not just a product supplier, for projects across North America. From initial specification through final detailing, support is available for stucco, EIFS, brick, stone, vinyl and ICF installations.
Typical Installation Workflow
A high-level sequence applies regardless of substrate:
Layout and marking of molding positions according to elevation drawings.
Cutting and mitering profiles on site using standard woodworking tools.
Dry-fitting pieces to verify alignment and joint spacing.
Applying polymer-modified construction adhesive to bonding surfaces.
Setting profiles and securing with mechanical fasteners where projections or wind exposure require it.
Back-caulking all edges and sealing joints with compatible exterior sealant.
Priming, then applying a stucco finish coat or high-quality exterior latex paint.
Design, Specification and Trade Program Support
Mouldex offers profile selection assistance, takeoffs from elevation drawings and detailing recommendations for stucco and EIFS assemblies. CAD details and specifications are available to members of our Trade Program. The Mouldex Trade Program provides exclusive pricing, custom profile runs and early access to new trim profiles for qualifying professionals.
Available support resources include:
- Profile catalogs and dimensional data sheets
- EIFS and stucco attachment details
- Custom profile design from architectural drawings
- Free sample kits
Request a Quote or order a free sample kit to evaluate coating quality and profile scale before specifying.
Frequently Asked Questions
What is stucco foam trim?
Stucco foam trim, also called stucco molding or stucco trim molding, is exterior trim made from an EPS foam core with a cement-based coating reinforced with fiberglass mesh. It is installed on stucco and EIFS walls around windows and doors, and as sills, bands and cornices, then primed and finished like the rest of the facade. For a material comparison, see our guide to the best exterior window trim for stucco homes.
Can I install stucco mouldings over existing stucco?
Yes. Mouldex trim can be adhered over sound, properly prepared stucco using construction adhesive and mechanical fasteners where needed. Preparation includes inspecting for cracks or delamination, completing repairs, and cleaning the surface. Because EPS foam-core moldings weigh just a few pounds per foot, they place far less stress on existing cladding than precast concrete additions.
Are Mouldex mouldings compatible with EIFS systems?
Mouldex profiles are commonly used with EIFS and other insulated stucco systems when detailed correctly. Coordination with the EIFS manufacturer and project designer is important to maintain drainage plane continuity and warranty conditions. Contact Mouldex for project-specific EIFS attachment details and adhesive guidance.
Do I need special structural support for these stucco trims?
Foam core moldings are much lighter than precast concrete and typically do not require added structural framing. Precast moldings often need lifting equipment to install, while foam profiles are installed with adhesive and, where needed, mechanical fasteners into the existing substrate. Consult project engineering where unusually large projections or high wind loads are present.
How are stucco mouldings finished and painted?
Profiles arrive with a factory-applied cement-based coating in cement gray. Primer is required, followed by an exterior latex finish or a textured brush coat. Trims can be color-matched to field stucco, contrasted as an accent or integrated into multi-tone schemes, and repainted on standard exterior maintenance cycles.
What maintenance do stucco mouldings from Mouldex require?
Very little. The moisture-inert foam core won't rot or warp, so periodic visual inspections, cleaning and occasional repainting are typically all that is required. Movement joints and penetrations should be resealed on the same schedule as the surrounding stucco or EIFS system.
Can the same moulding profiles be used on brick or stone as well as stucco?
Yes. The Mouldex profile system is used across stucco, brick, stone, vinyl and ICF. Installation details vary slightly by substrate, but the material and profiles remain the same, so specifiers can standardize profiles across mixed-material facades for a cohesive look and simpler procurement.
