Our composite window sill mouldings have a lightweight, moisture-inert foam core with a hard cementitious coating, so they look like cast stone but won't rot or warp, and are less susceptible to cracking and spalling.
Read more about Window Sills
Choose from 18 standard sill profiles or have a custom profile made to match existing sills, for stucco, EIFS, brick and stone facades across Canada, the United States and the Caribbean. For specification guidance, see why window sills fail and how to specify one.

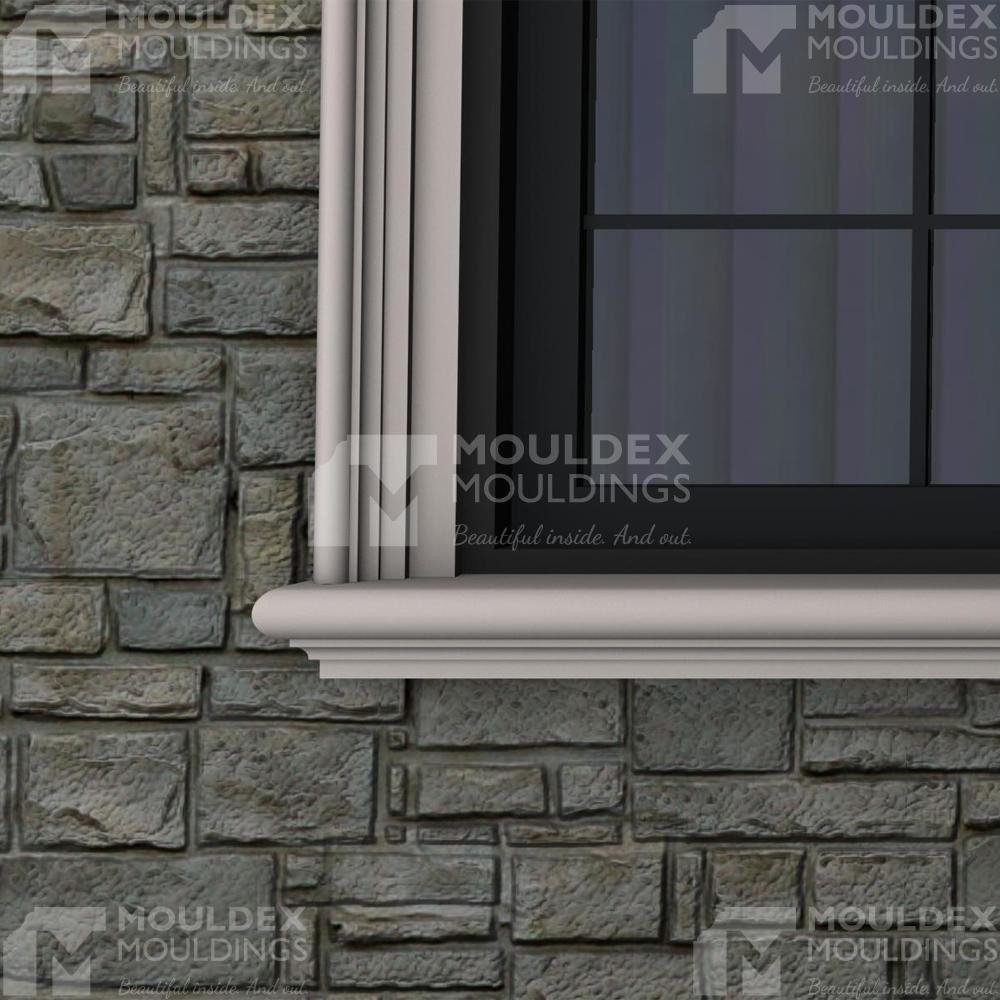

Mouldex exterior window sill moldings (also called window ledges or outer window sills) shed water away from the wall, protect the sub-frame from moisture intrusion, and finish the base of the opening with a clean, monolithic masonry look that won't rot, crack, or warp.
These lightweight composite profiles provide a low-maintenance limestone aesthetic without the structural weight of cast stone, ensuring superior drainage and zero-rot durability compared to traditional materials used around windows and exterior sills, including wood sills, vinyl, and aluminum, as outlined in our guide to different types of exterior moulding materials.

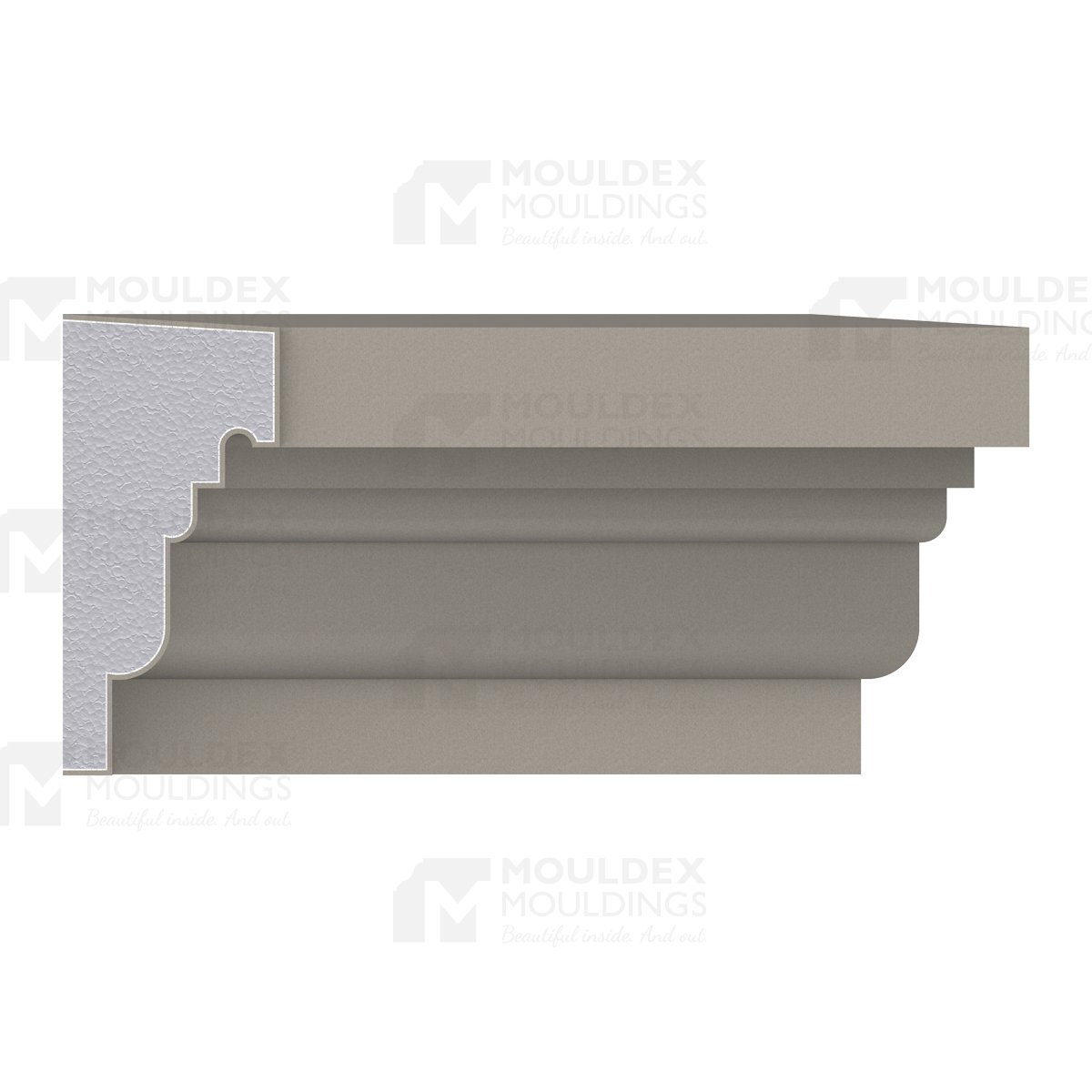

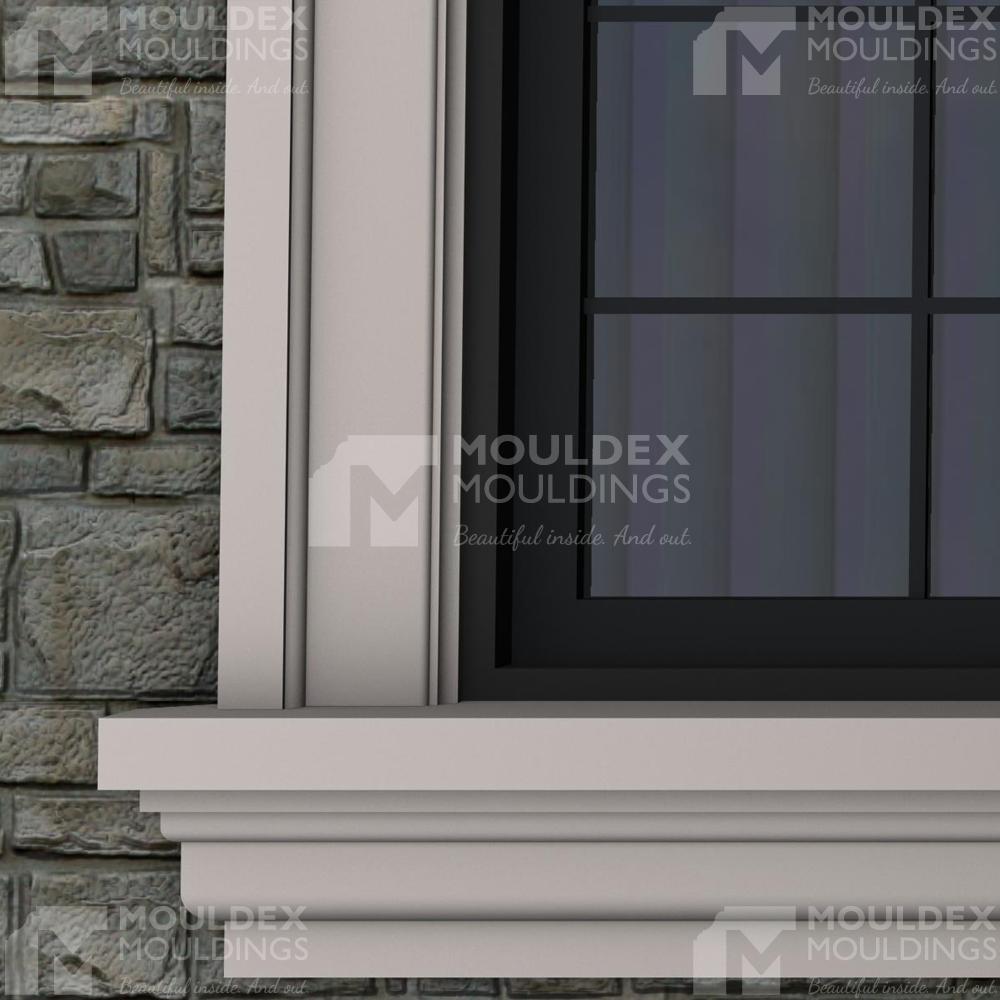

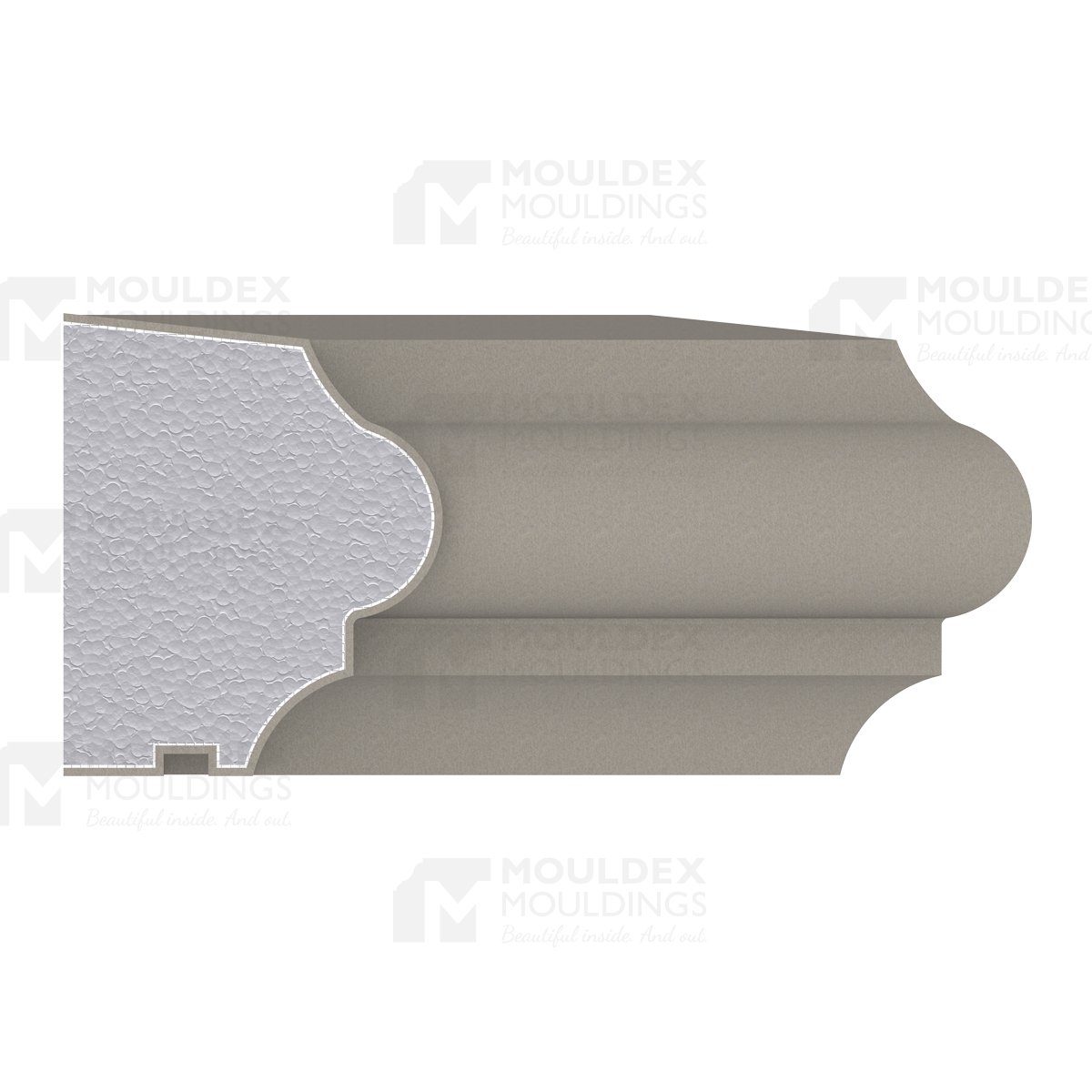

Proper installation and sealing at the joints help prevent water from entering around the window frame, especially when used as part of a complete low-maintenance exterior moulding system. Common signs of a damaged sill include visible surface wear or cracking, which help determine whether to repair, replace, or consider exterior window trim and casing upgrades or full window replacement. While minor issues may be an easy DIY fix, homeowners should pay close attention to hidden damage, and professionals may be needed when there is extensive damage, particularly when specifying premium sill profiles such as The Ava architectural exterior window sill or the Leaside exterior window sill.
WINDOW SILL SUMMARY
Inorganic Composition
Moisture-inert. Won't rot or warp, and less susceptible to cracking.
Versatile Compatibility
Expertly bonds to Brick, Stone, Stucco, Vinyl, and ICF.
Bespoke Customization
Custom profiles, including arches and curves.
Unmatched Finish
Mimics smooth-sanded wood or textured masonry with ease.
Lifetime Stability
Dimensionally stable through freeze-thaw and seasonal swings.
Weight Efficiency
A fraction of the weight of stone. Usually no structural upgrades needed.

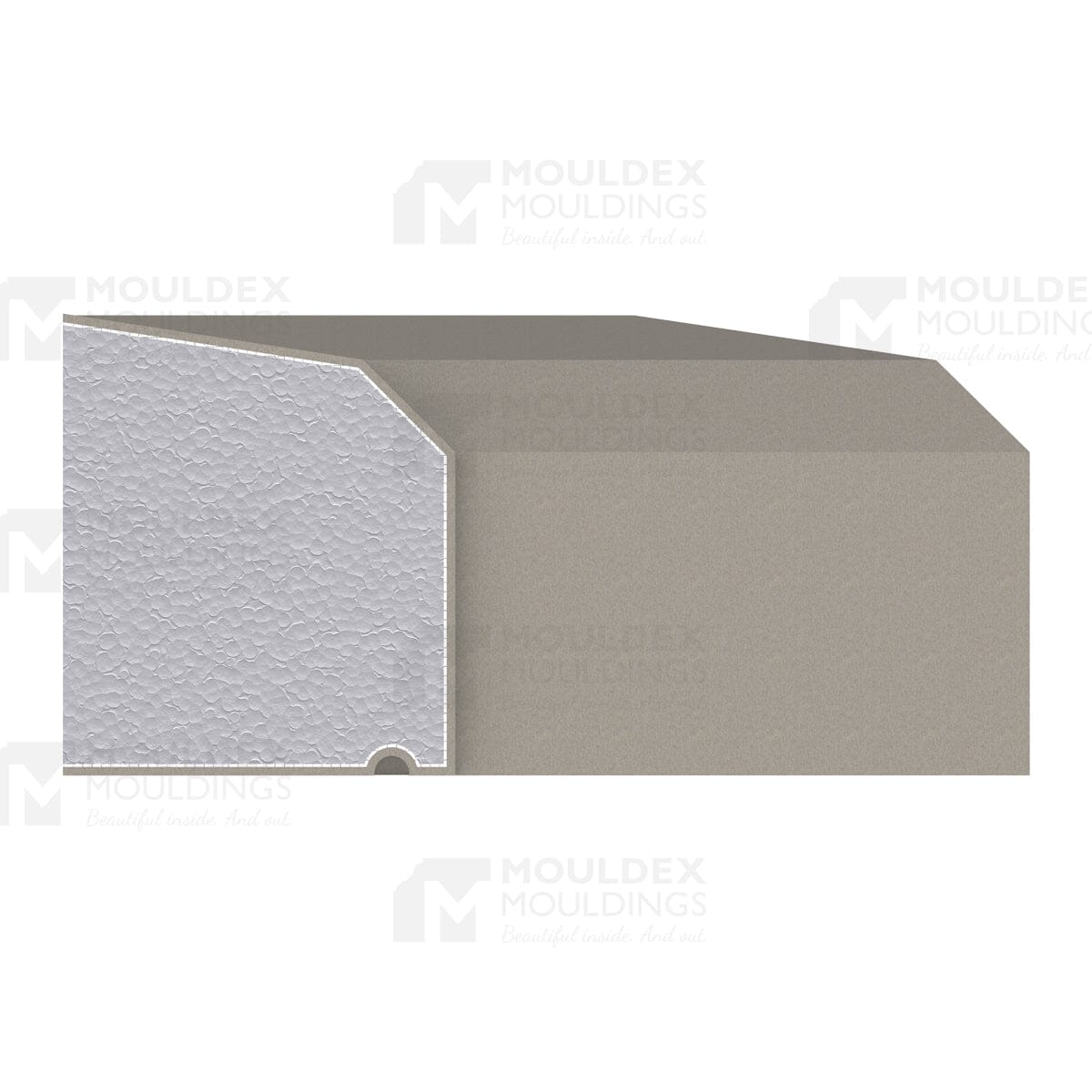

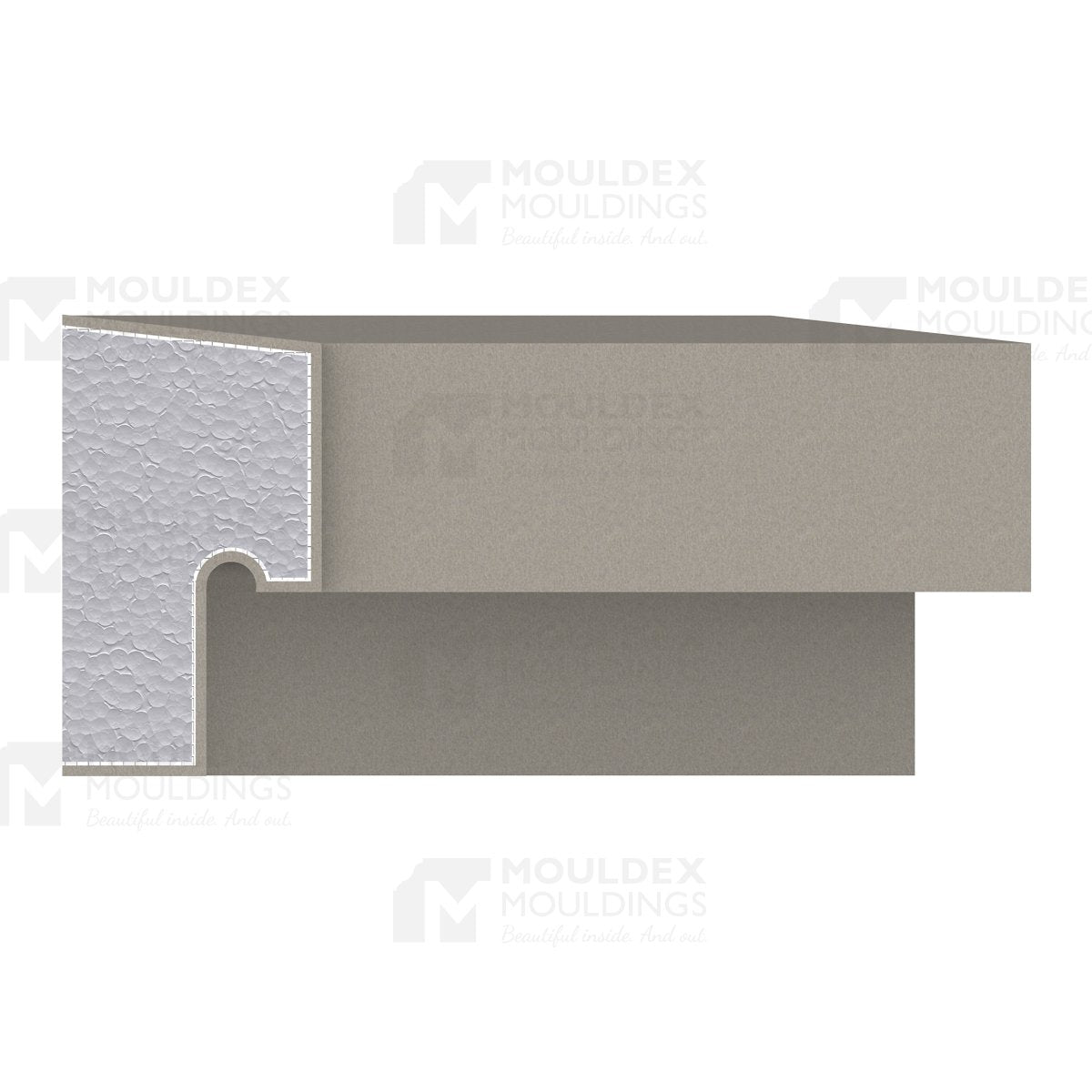

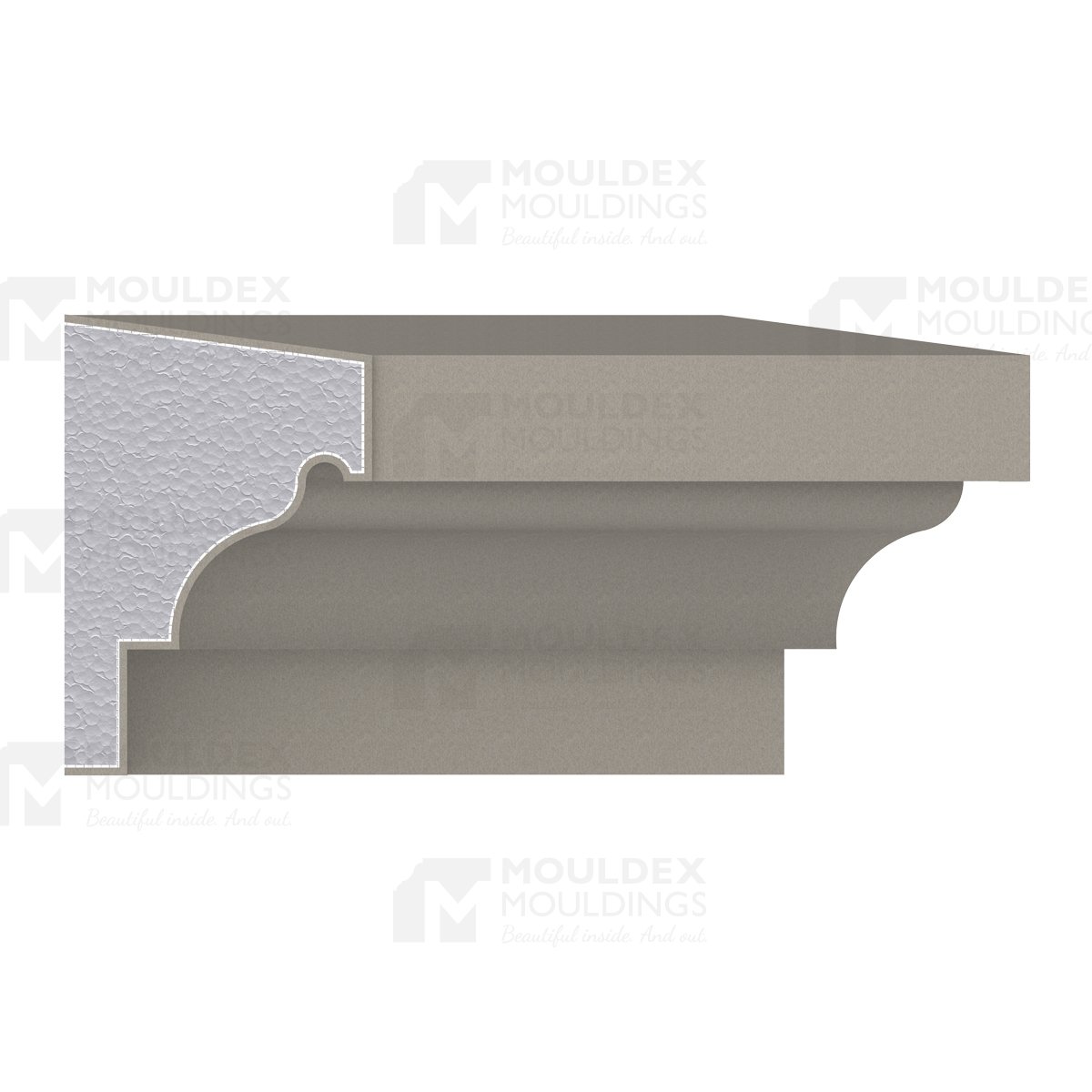

Composite Window Sill Molding Collection
MATERIAL COMPARISON: EXTERIOR WINDOW SILL MOLDING OPTIONS
| Attribute | Mouldex Window Sills | Pre-Cast Concrete | Wood (Metrie / Alexandria) | PVC / Poly (Azek / Fypon) |
|---|---|---|---|---|
| Weight | Ultra-Light (a fraction of the weight) | Extremely Heavy | Moderate | Light |
| Durability | Polymer-Cement (Impact Resistant) | Masonry (Brittle) | Prone to Rot/Warp | High Expansion |
| Installation | 1-Person / No machinery | Crane / Structural Ties | Skilled Carpentry | Standard Mechanical |
| Maintenance | Low Maintenance | Patching / Re-sealing | Painting / Staining | Fading / Chalking |
Meet The 5th Category
Cellular PVC, Polyurethane, Fiber Cement, and WPC are the four materials builders have relied on for exterior sills. Mouldex adds a fifth to that list: Cement Coated Expanded Polystyrene, built to beat all of them on weight, moisture resistance, and how well it holds up over time.
Technical Performance and Engineering Specifications
The engineering behind Mouldex exterior window ledges centers on a foamcore composite construction built to survive the single harshest exposure point on any window opening: the ledge that catches every drop of runoff.
- 01
Structural Properties

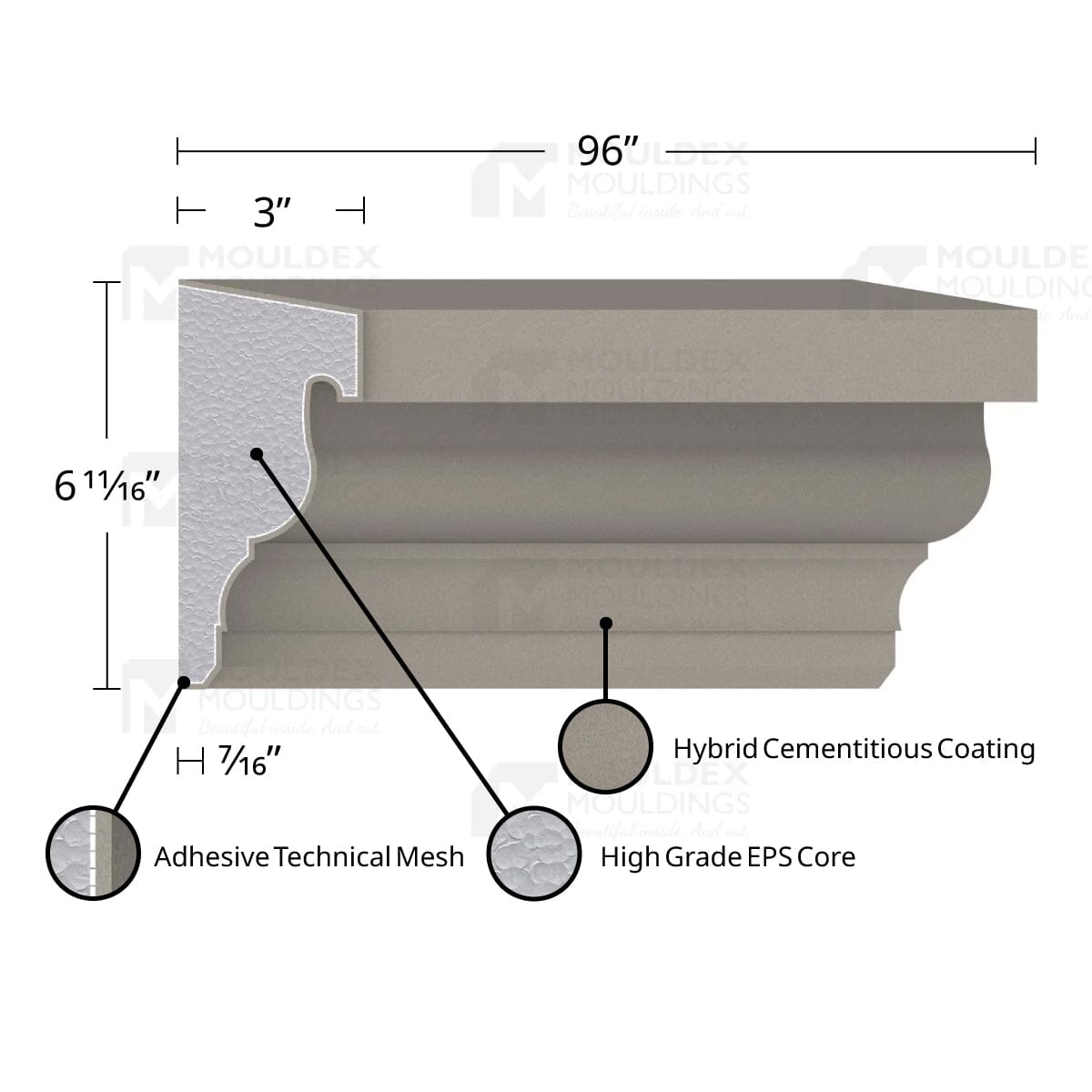

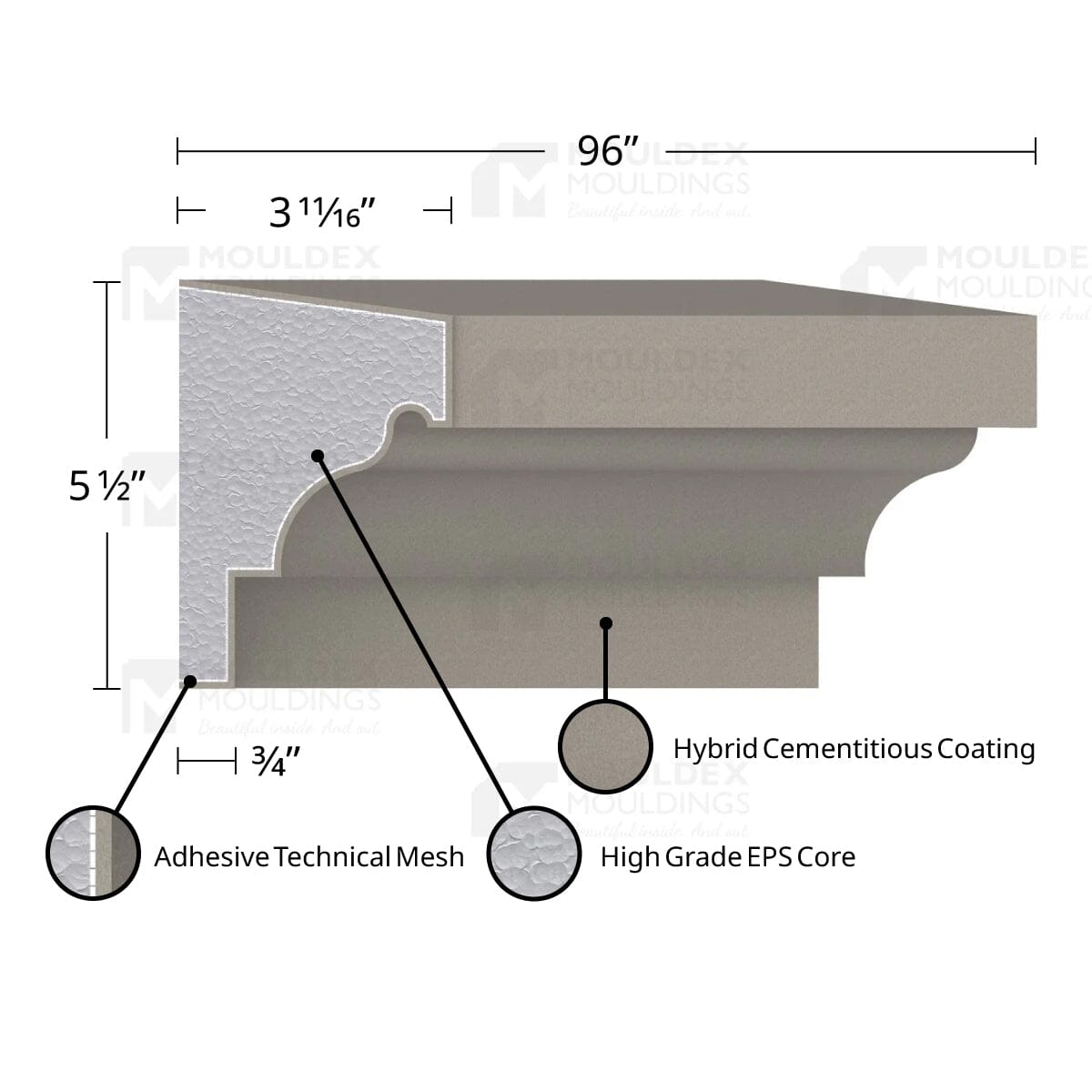

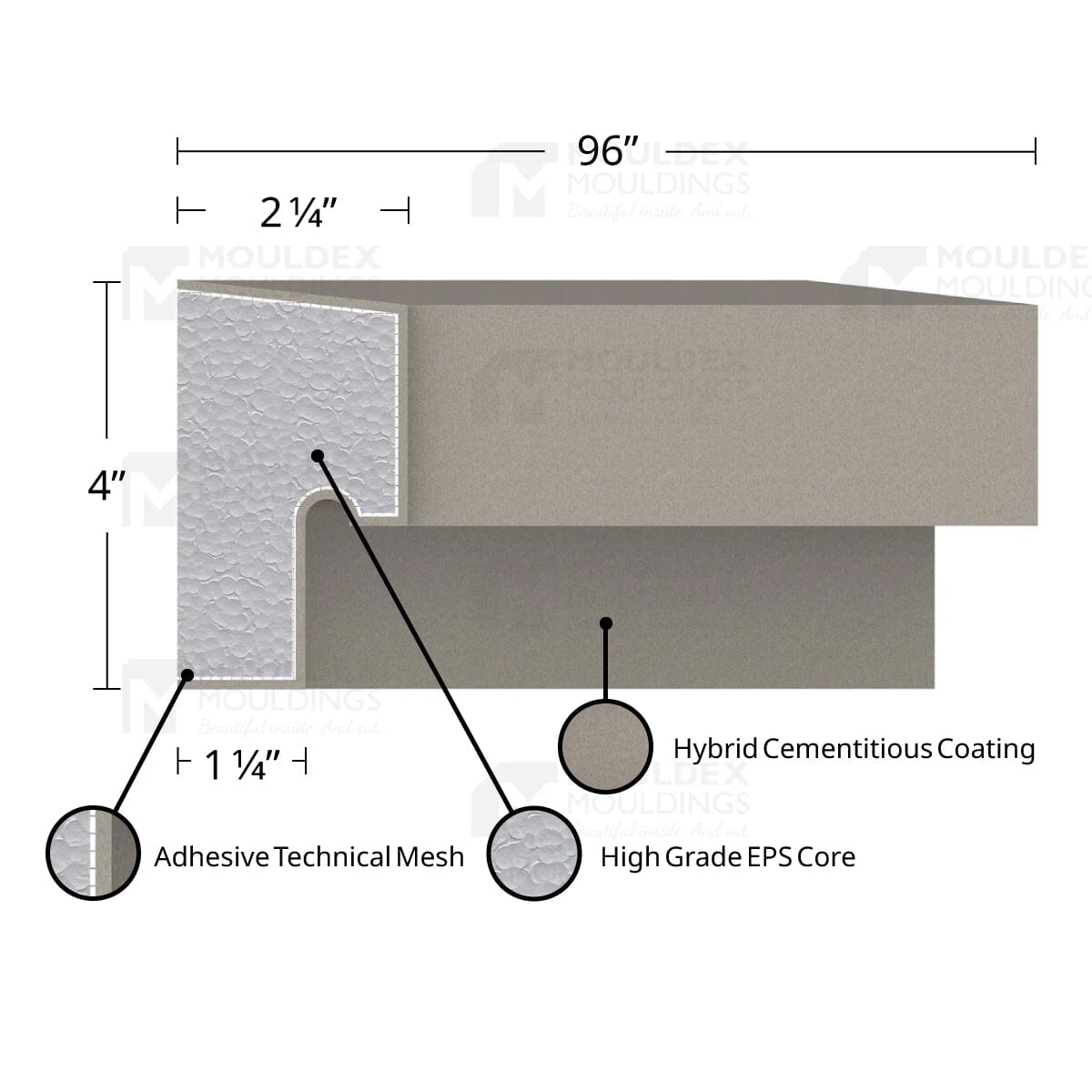

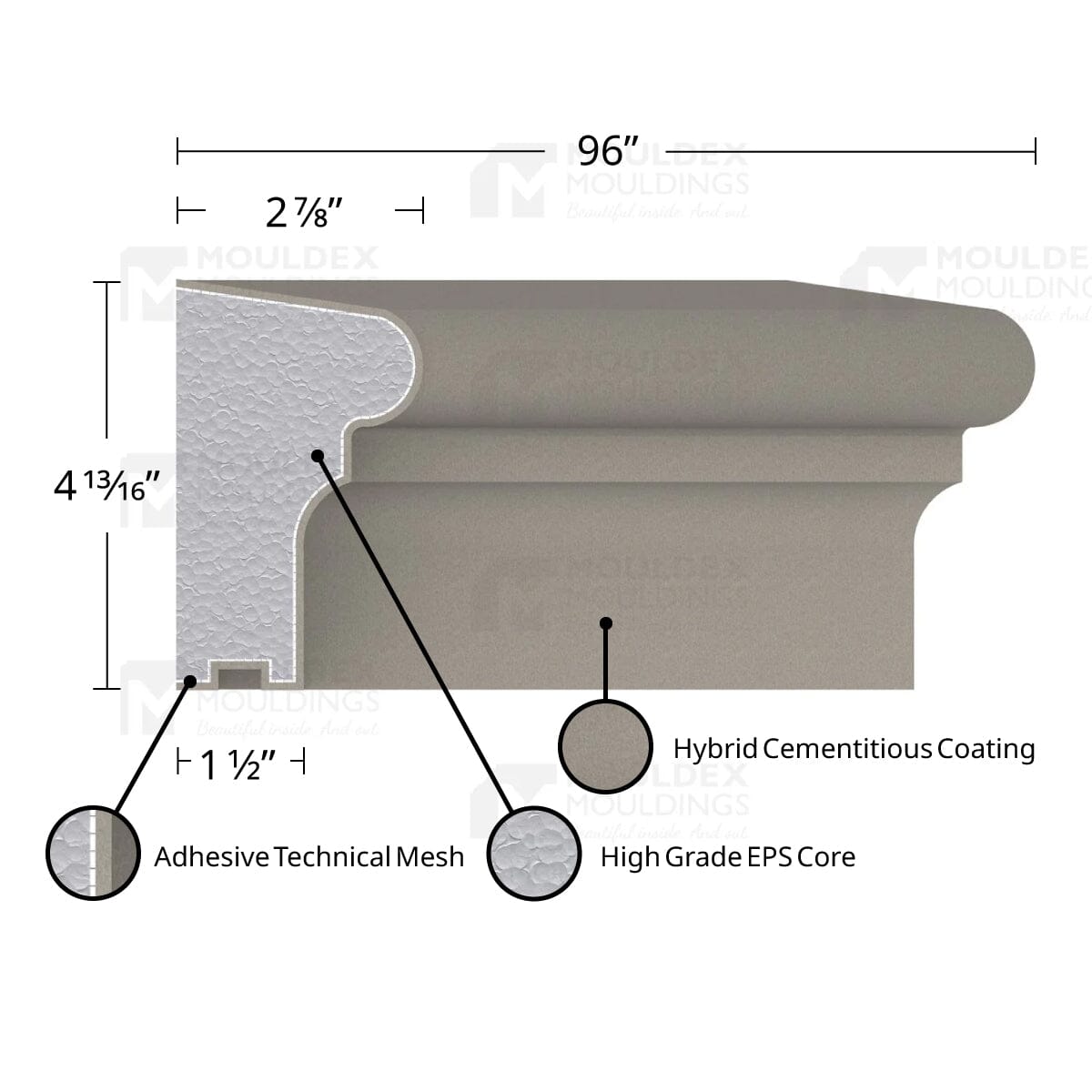

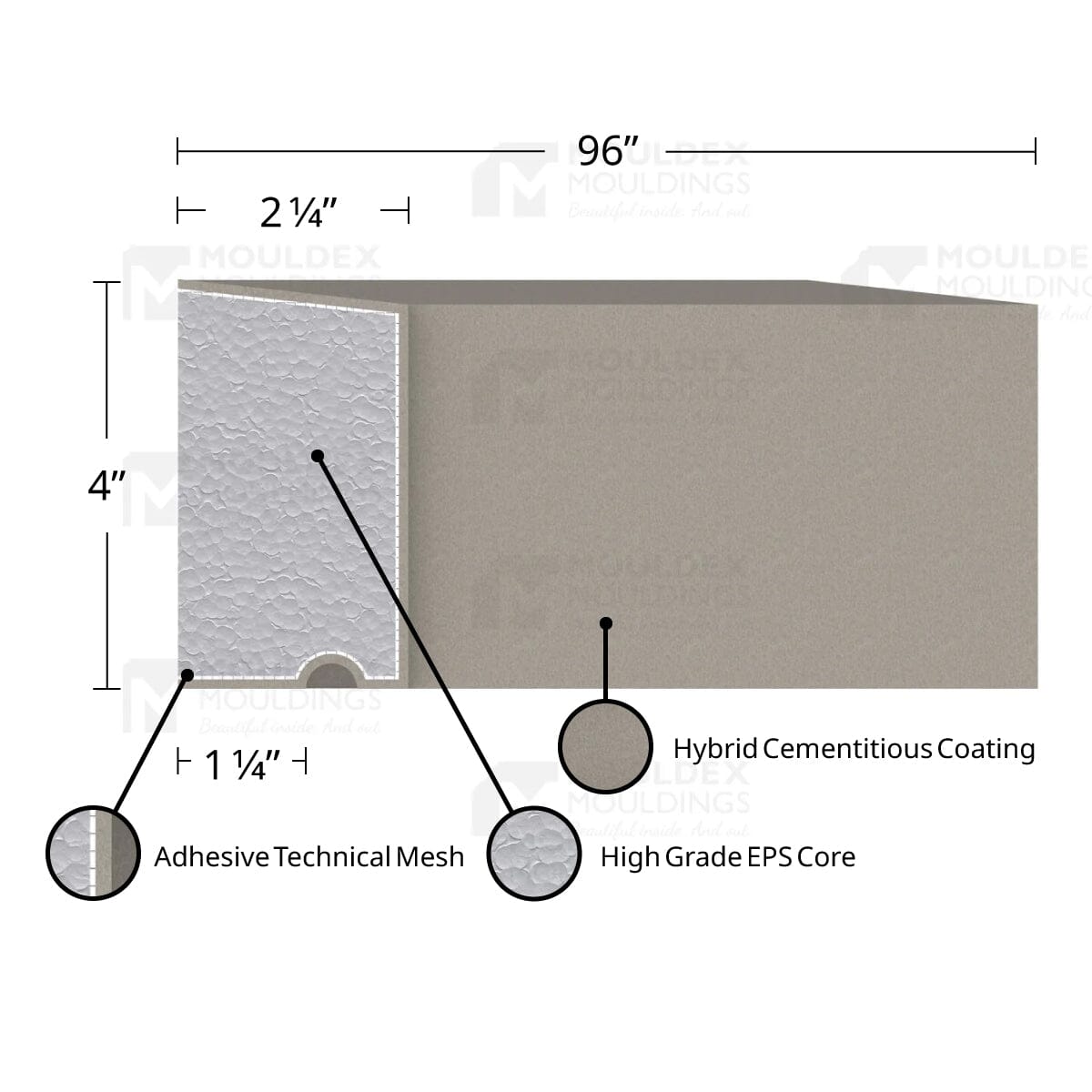

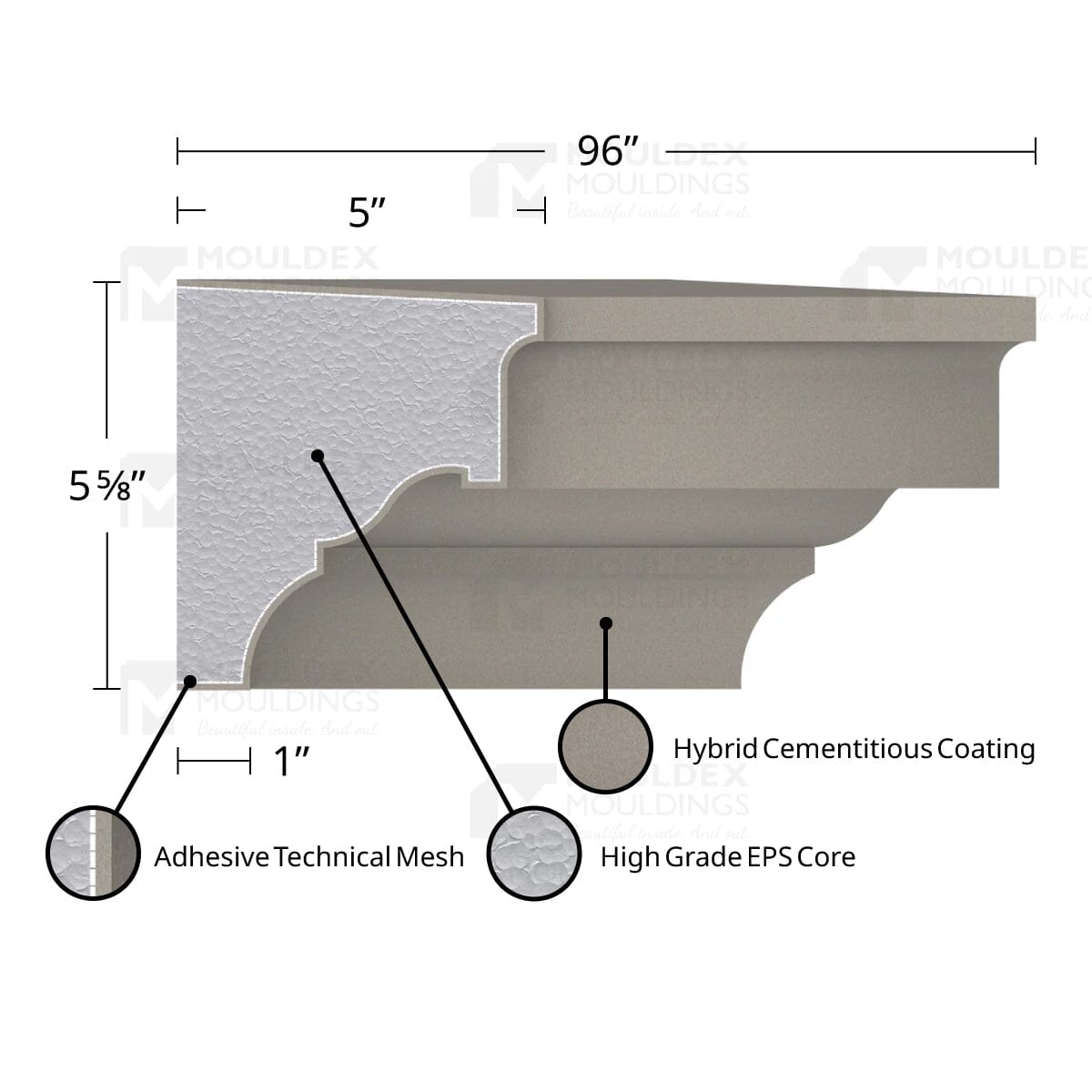

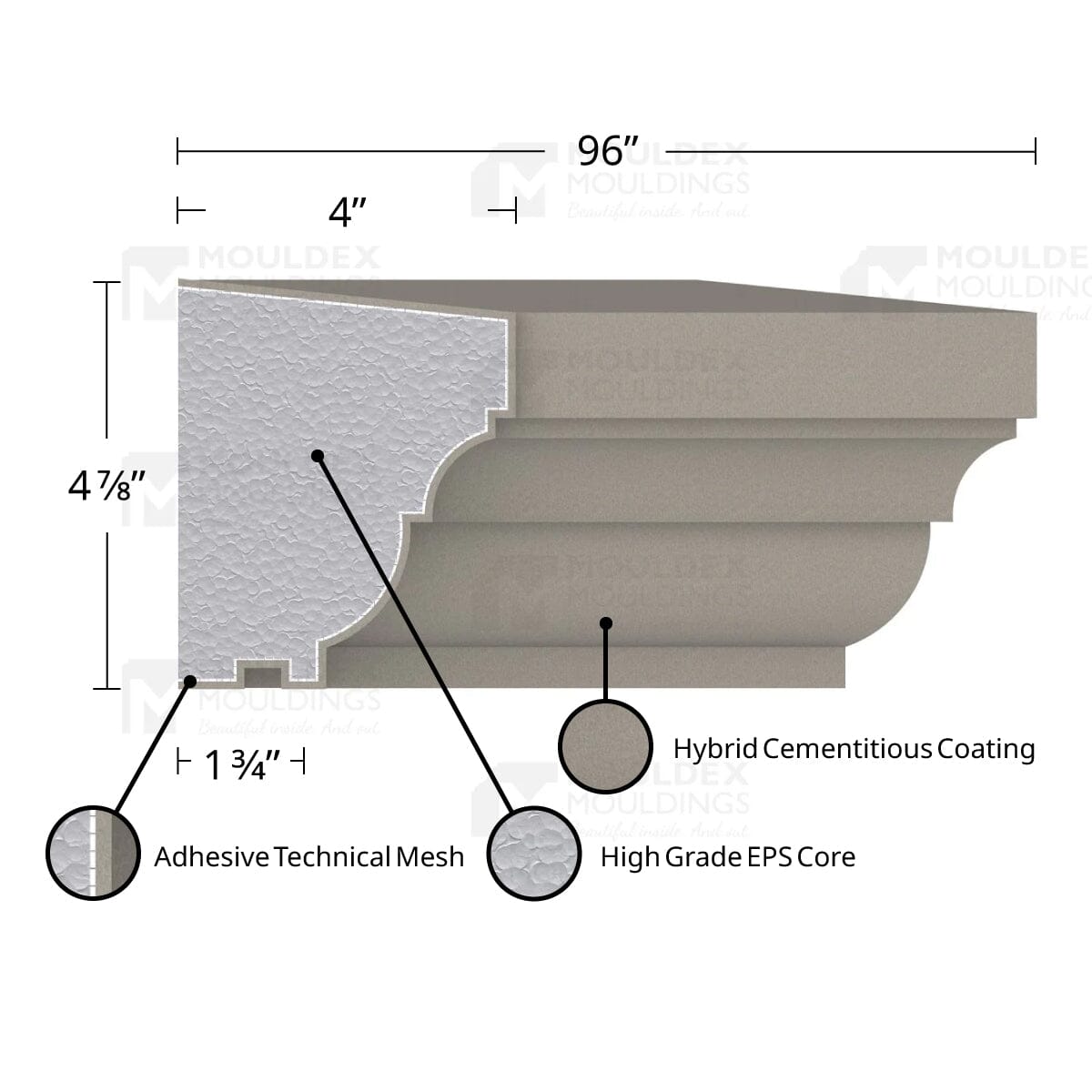

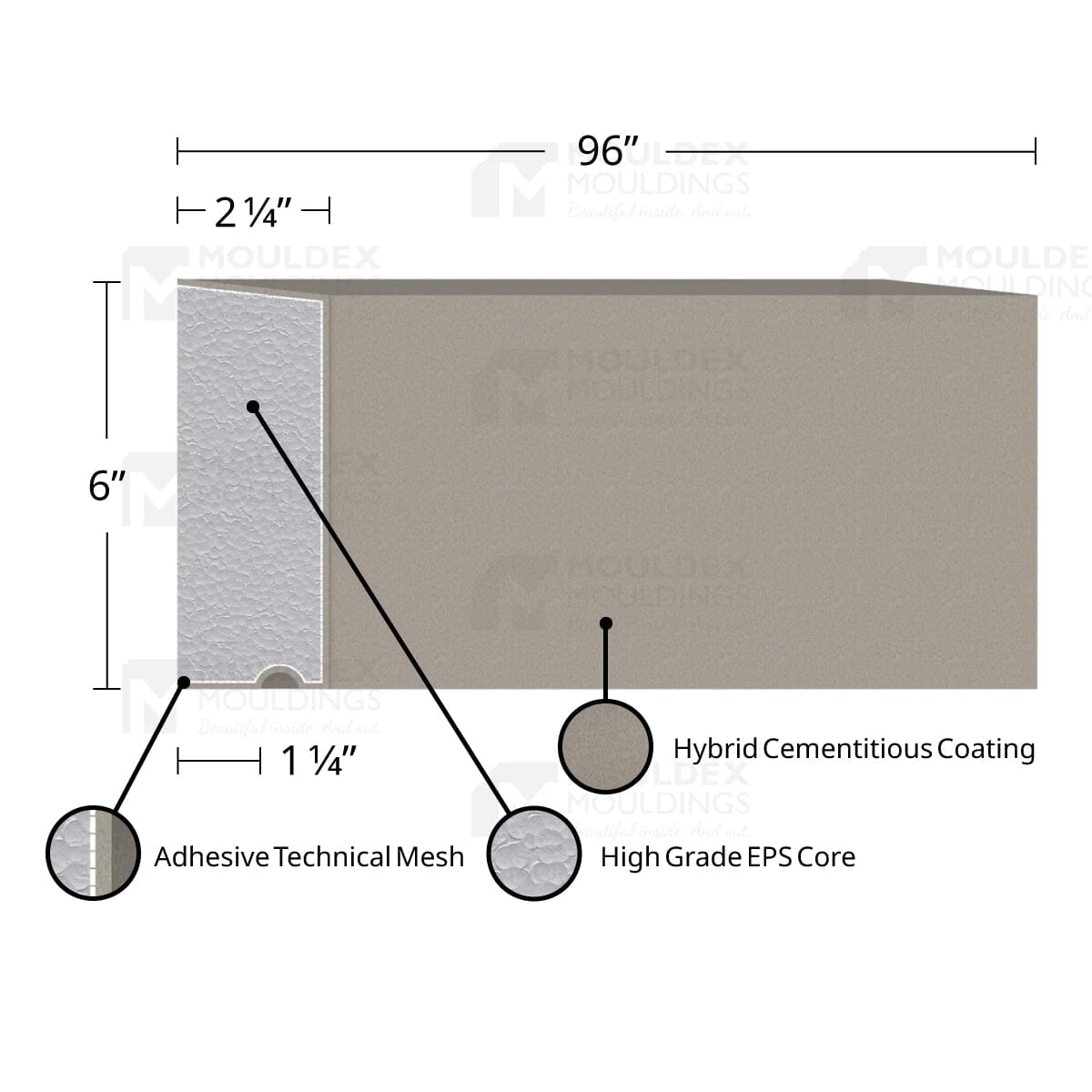

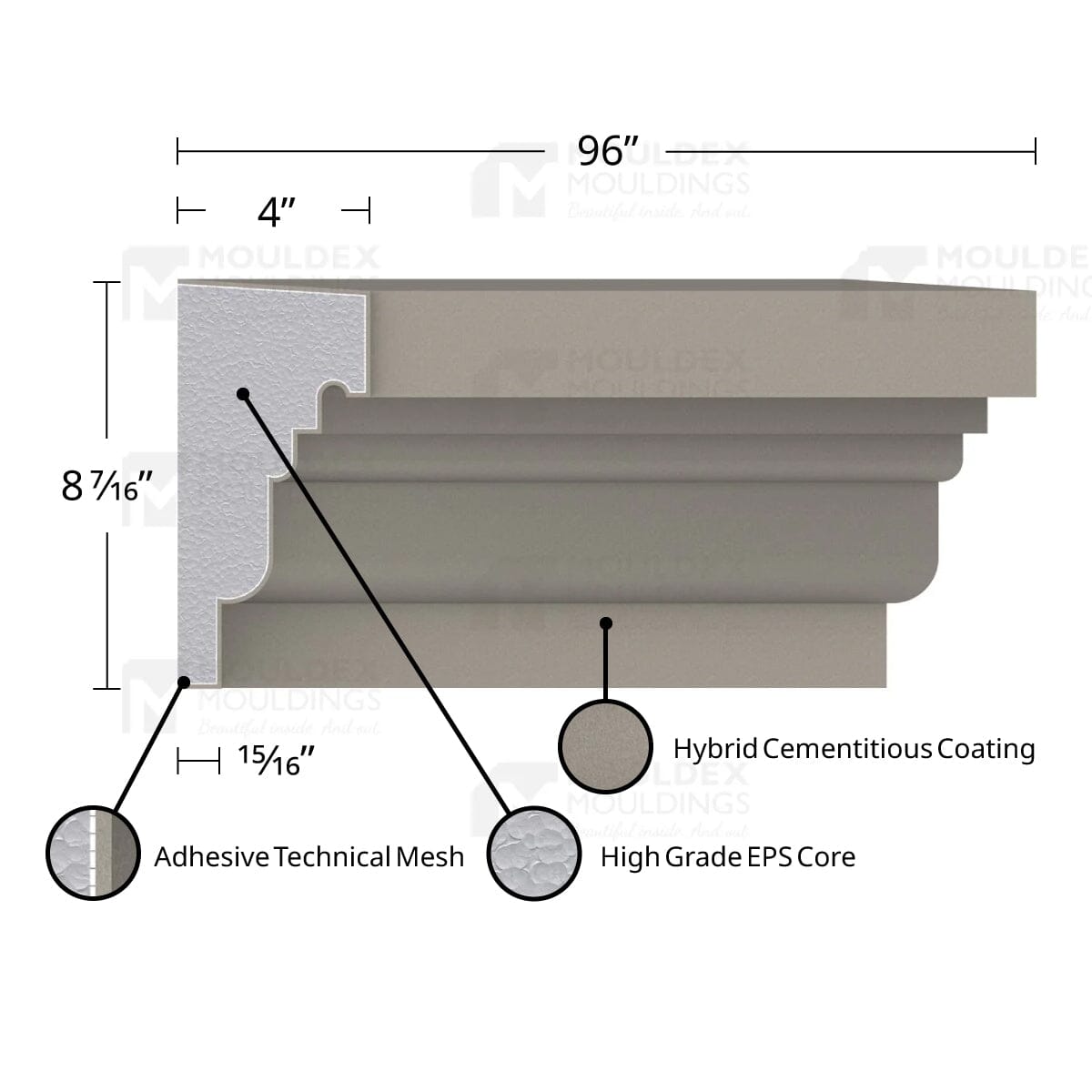

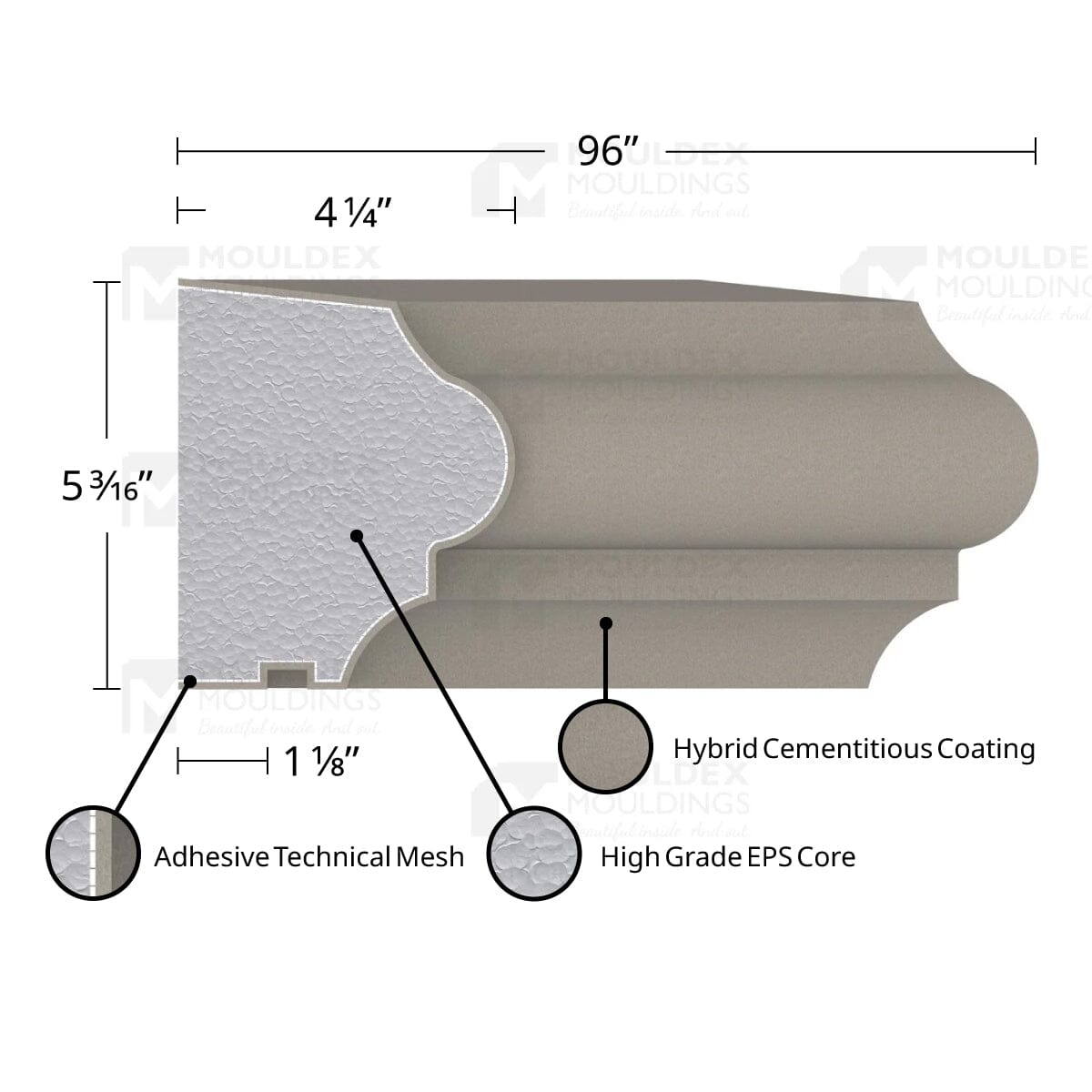

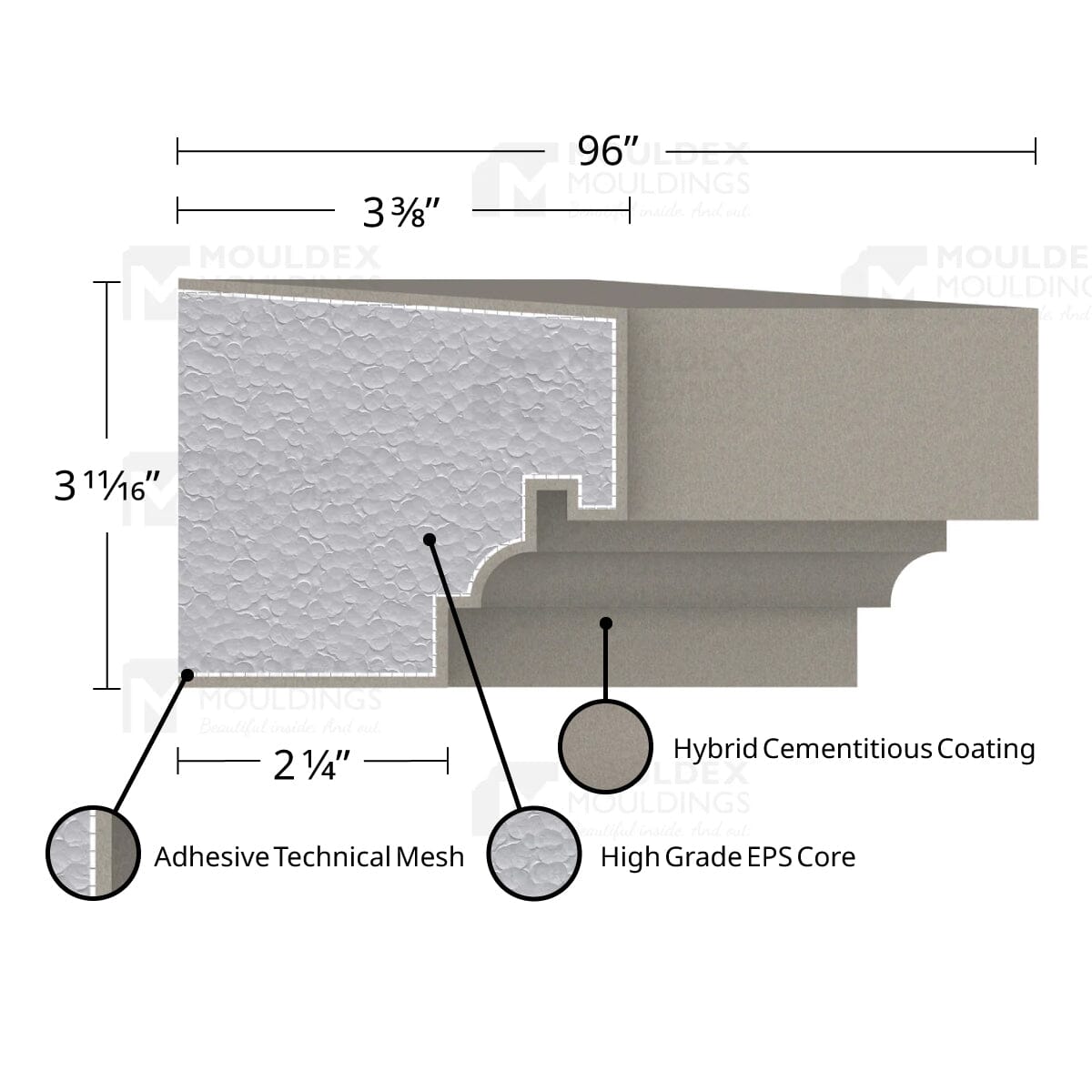

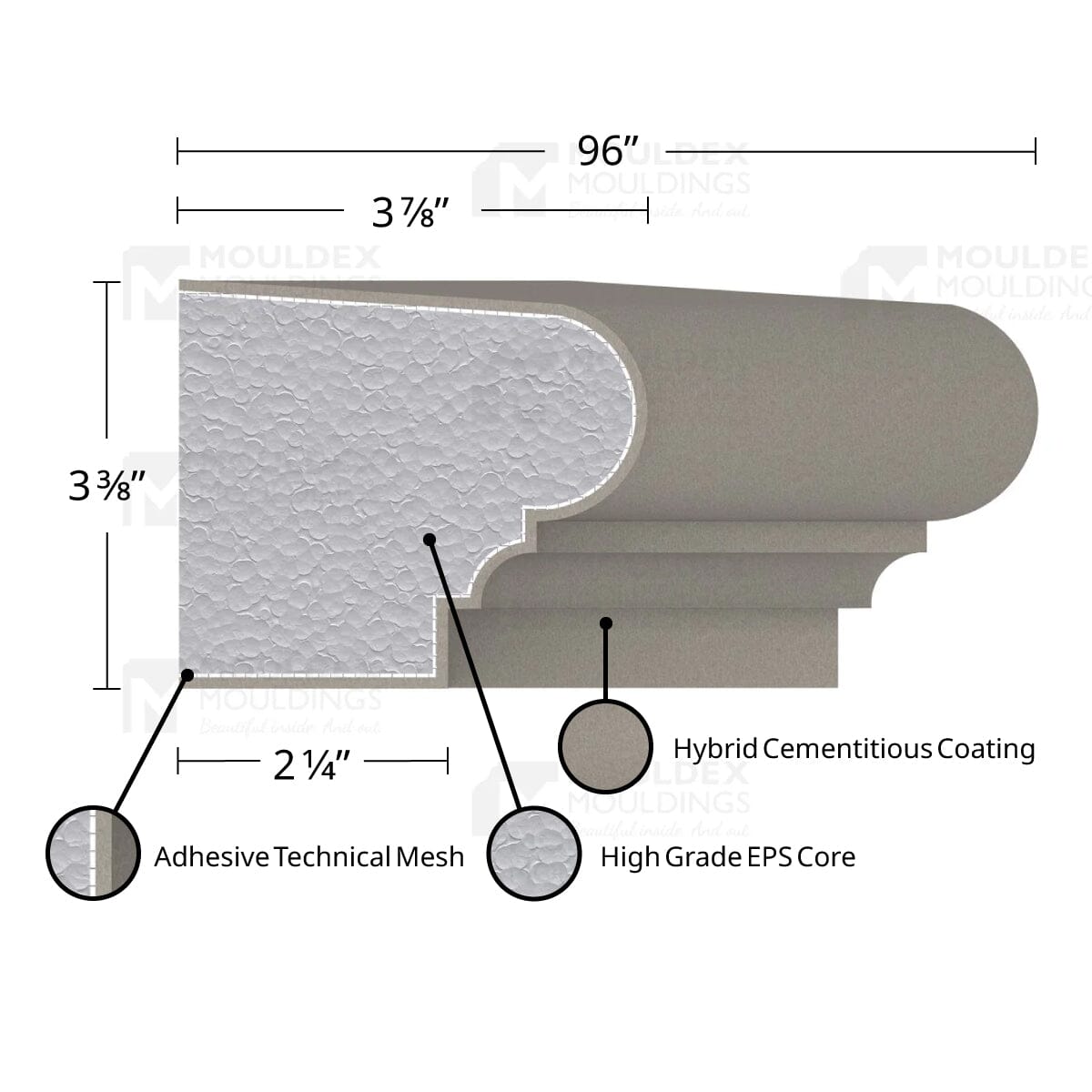

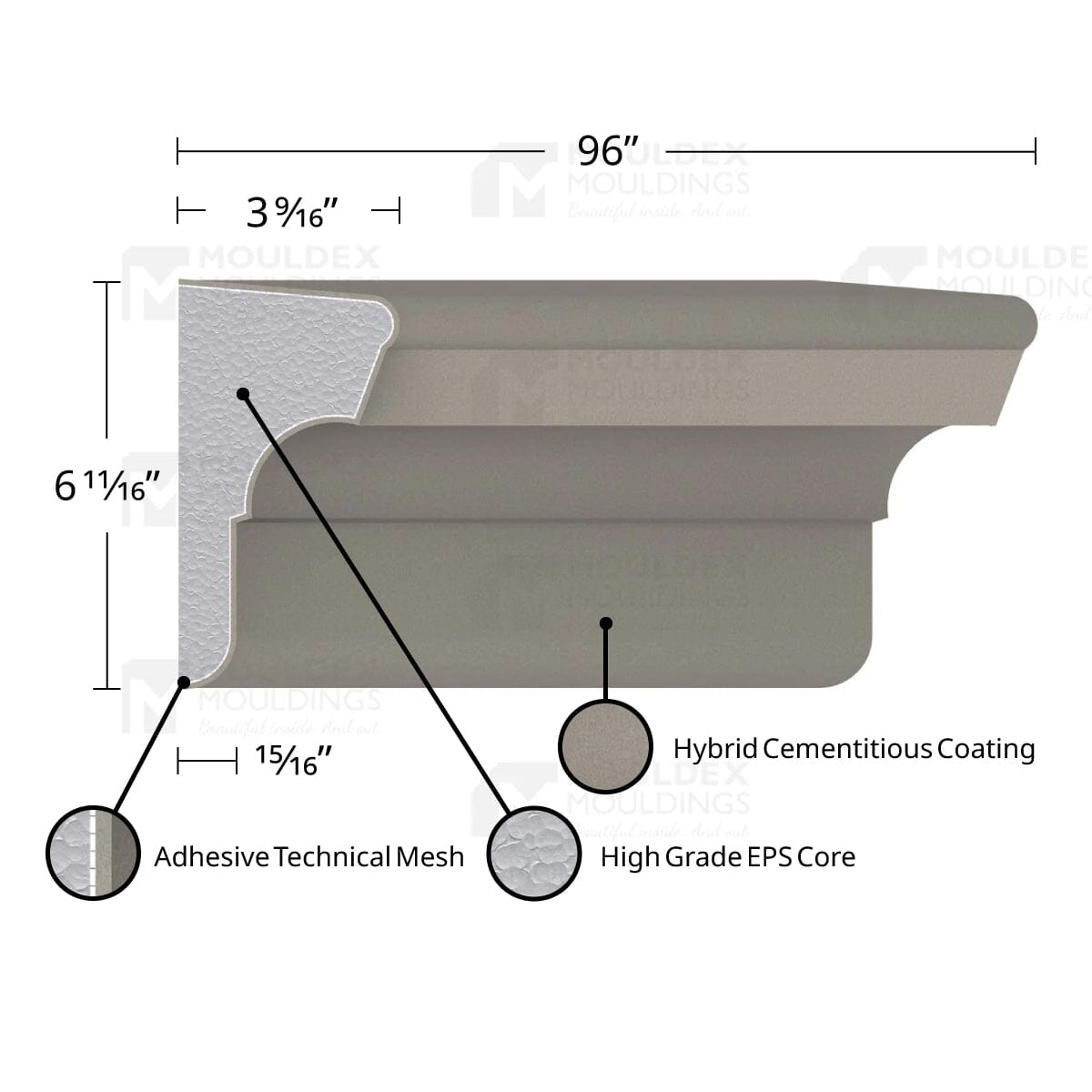

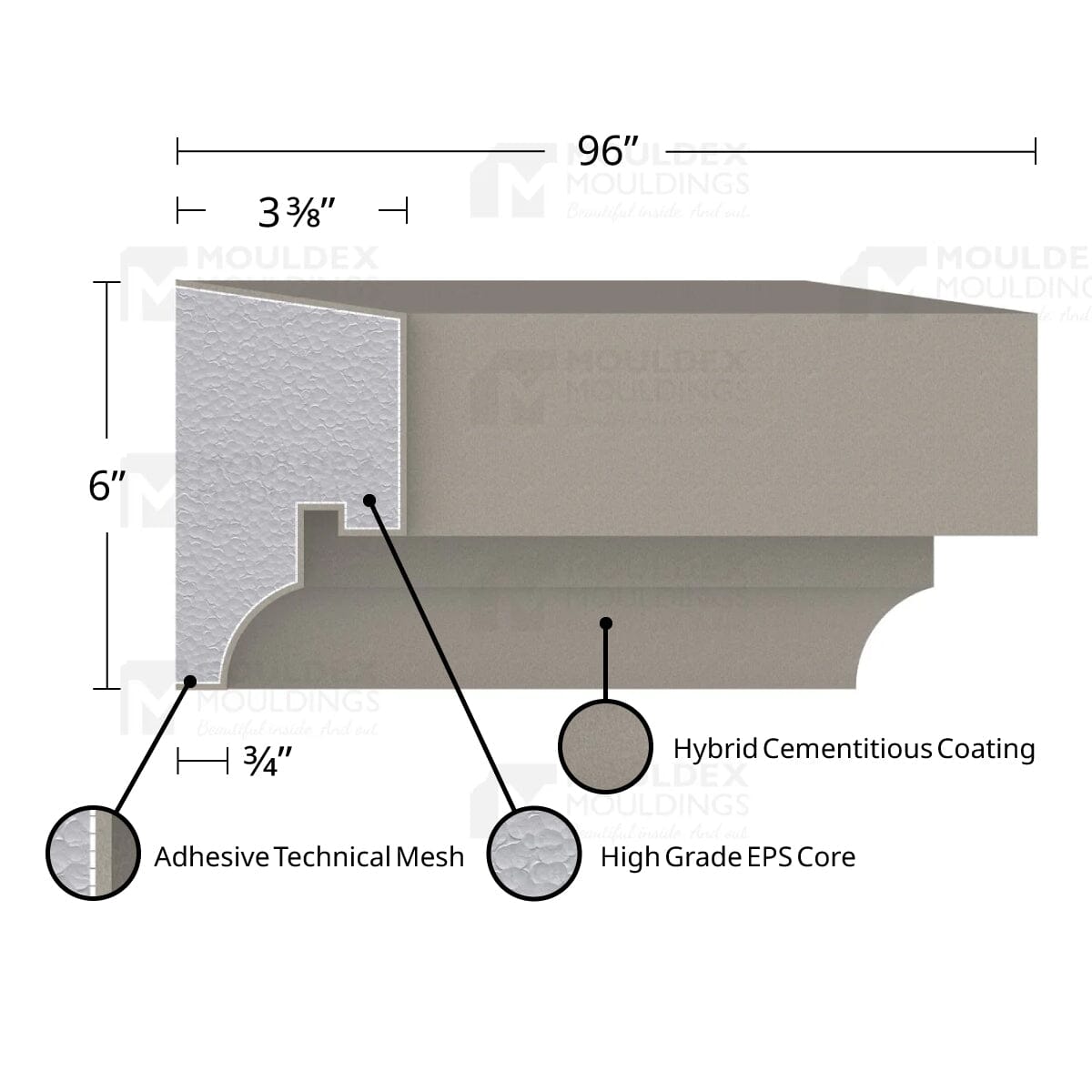

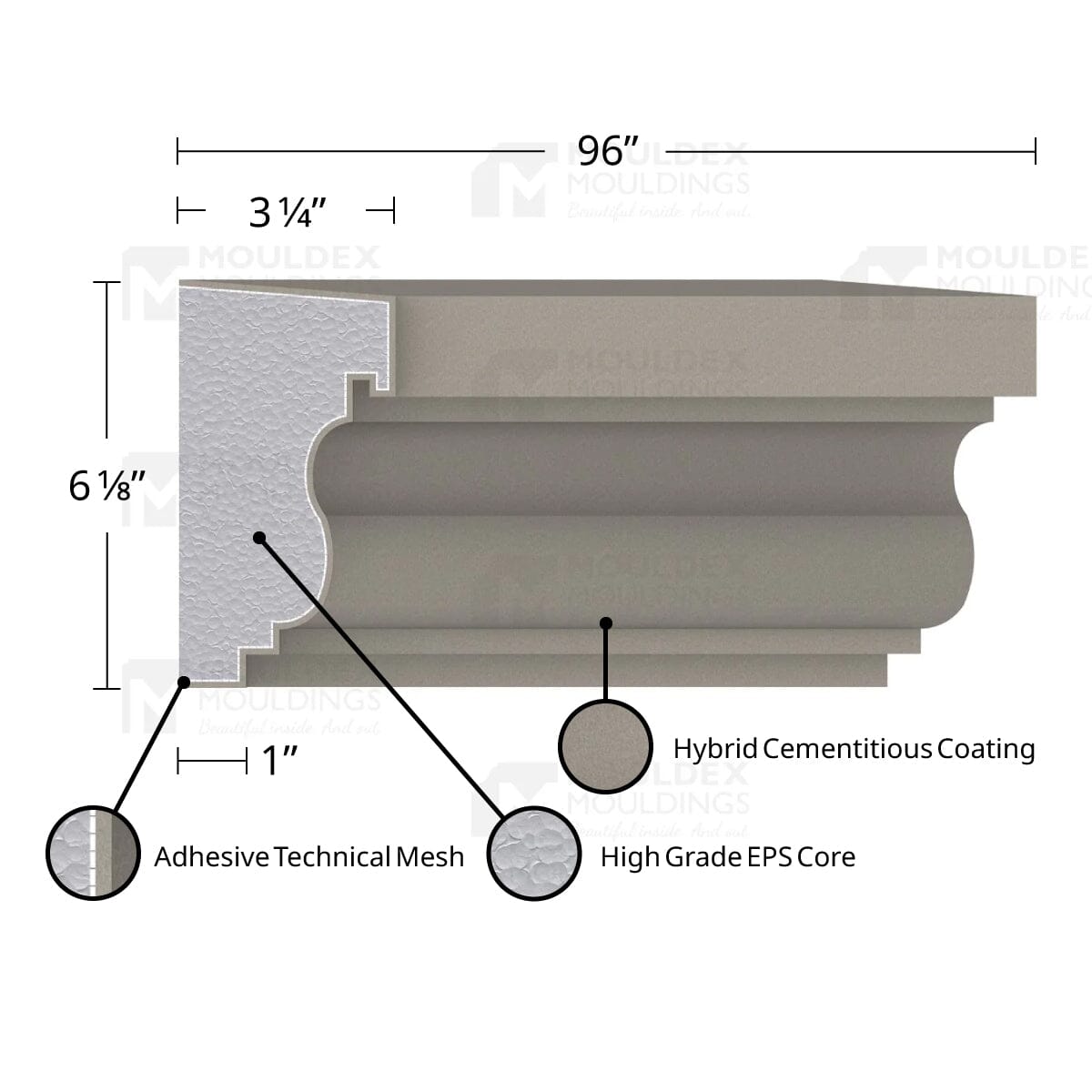

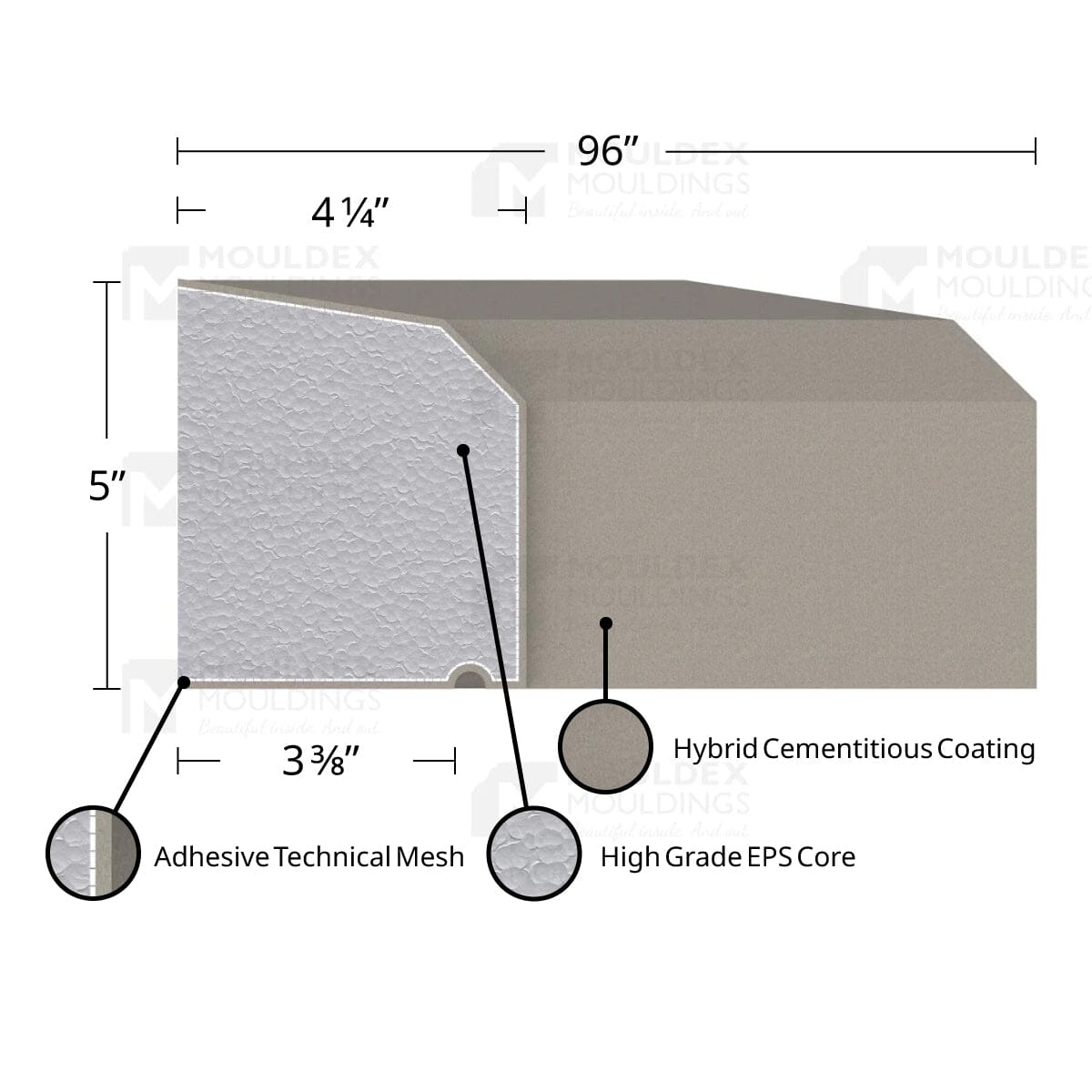

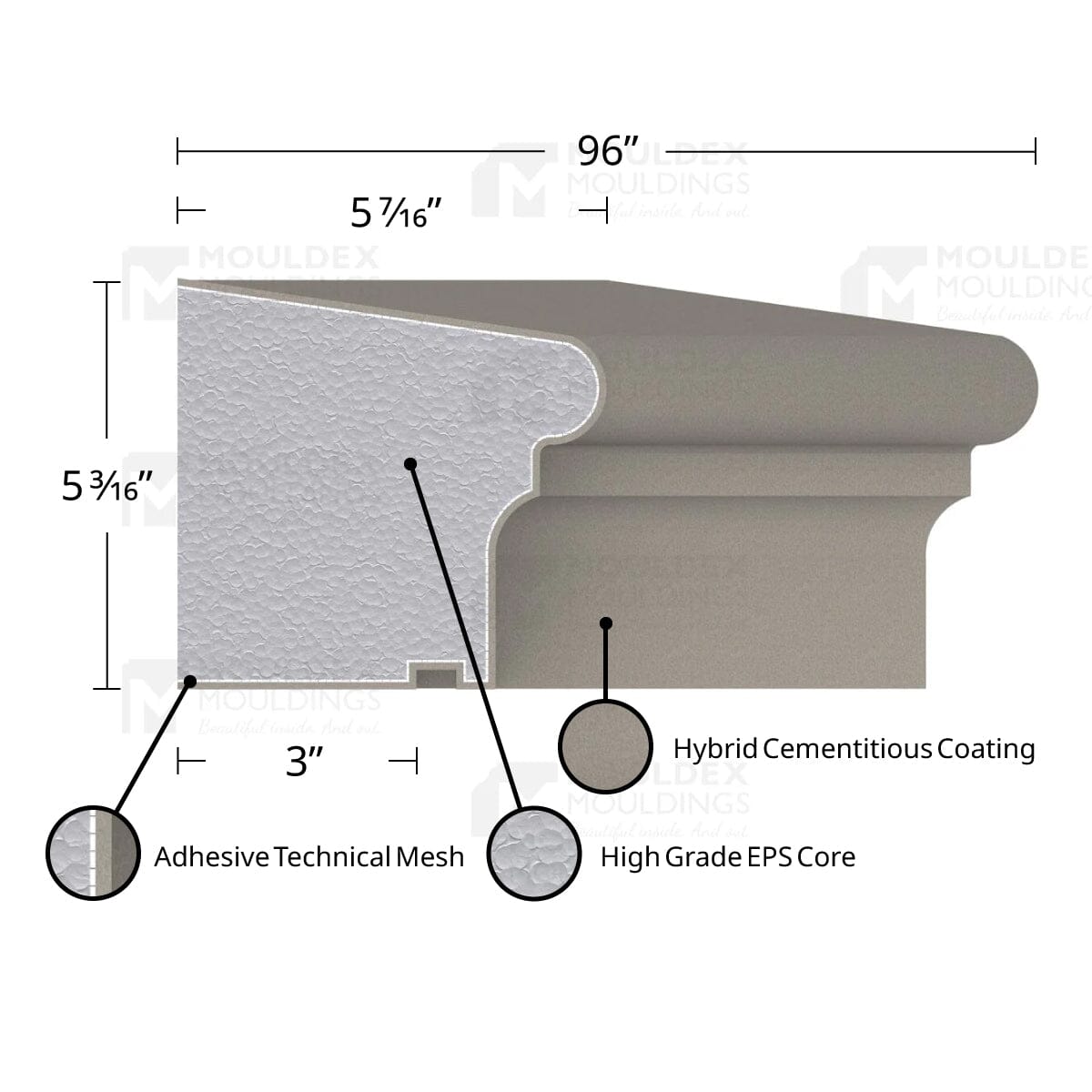

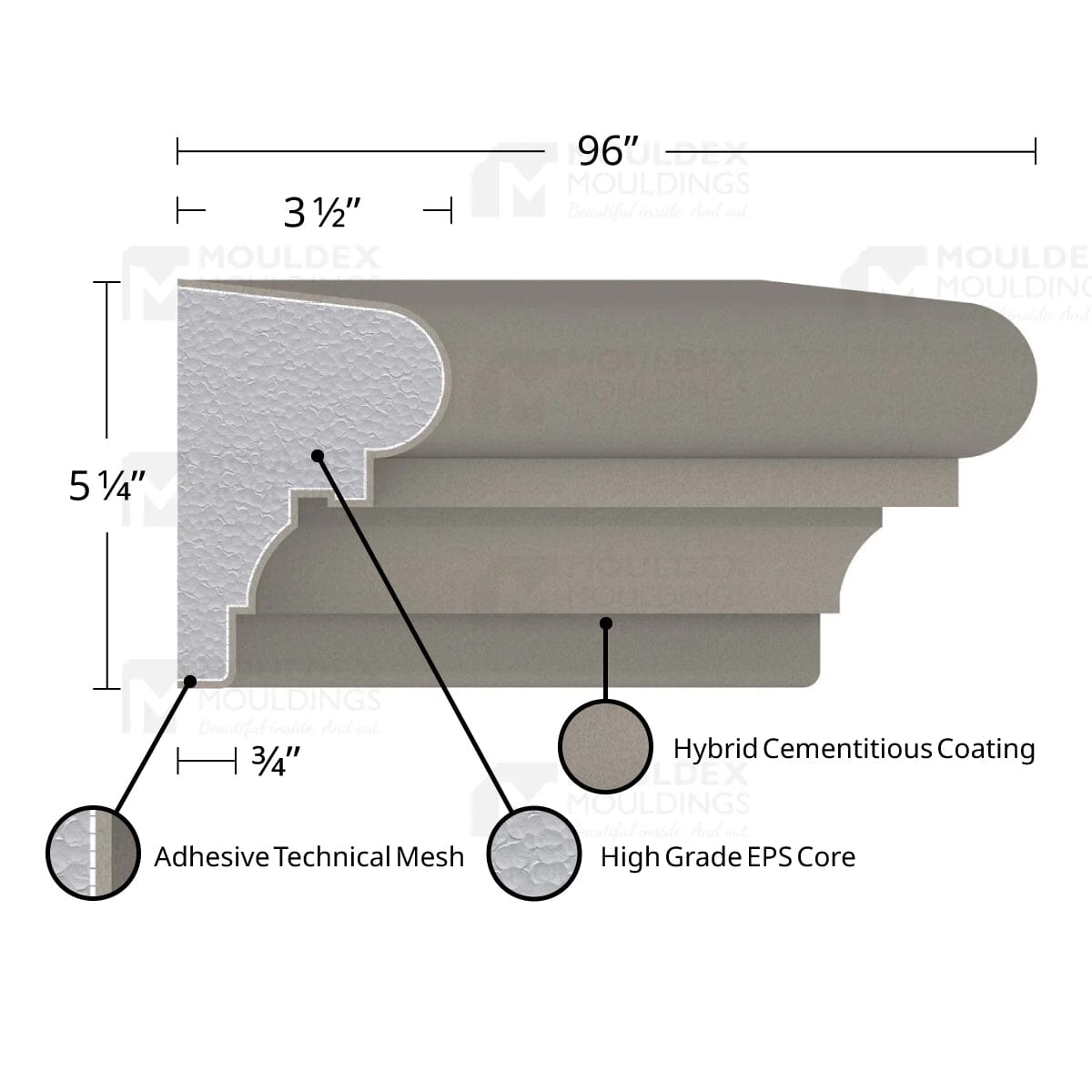

The core composition uses high-density expanded polystyrene (EPS) with a polymer-modified cementitious coating reinforced by alkali-resistant fiberglass mesh.Read more
Dimensional stability is a defining characteristic: the thermal expansion coefficient is engineered for near-zero joint expansion, meaning a sill maintains a tight seal at the wall rather than opening a gap where PVC or wood would shift. This fully inorganic construction resists rot and warping at a point of the building that sees constant water contact. - 02
Moisture and Weather Resistance
The EPS core is fully encapsulated in inorganic polymer-modified cement, making it moisture-inert, with no organic content to support fungal growth.Read more
The coating is engineered to resist cracking under extreme North American freeze-thaw cycles, which is critical for a sill, since it holds standing water and snow longer than any vertical trim element. UV stability comes from the inorganic finish itself, which arrives in a cement-gray state, ready for primer and exterior acrylic latex paint. - 03
Installation Engineering
Installation is designed primarily around adhesive bonding.Read more
Bond-ready masonry adhesives, along with approved sprayfoam adhesives, secure the sill directly to stucco, brick, stone veneer, EIFS, ICF, and siding substrates, with no mechanical fasteners penetrating the top surface that could create a water entry point directly beneath the window. Pair your window sills with matching window trim and cornice moulding for a complete exterior trim system.
Selection Guidelines for Professionals
Choosing the right exterior window sill impacts curb appeal and protects the opening from water damage. Here are the decision criteria that matter most.
- 01
Depth & Overhang
Measure from the inner edge to the drip edge, accounting for wall thickness plus 1–2 inches of overhang past the cladding so water falls clear of the wall below.Read more
Browse our full variety of window sill ledges for inspiration. - 02
Slope & Drainage
A functioning sill needs a minimum 5° slope, ideally 6–10°, to shed water away from the window rather than pooling at the frame.Read more
Steeper applications benefit from a more pronounced bevel to keep the drainage path clear. - 03
Height & Profile Matching
Match the sill's back height and bottom thickness to the existing casing or masonry coursing above and below it, so the finished opening reads as one coordinated assembly rather than a mismatched addition. - 04
Climate & Environment
Northern freeze-thaw zones need materials rated for thermal cycling at a point that holds standing water and snow, and our freeze-thaw-stable profiles are built for exactly this, and Class A fire-rated options are available on request.Read more
Coastal sills demand inorganic, corrosion-resistant systems, while hot southern climates call for attention to thermal expansion and lighter color selection. - 05
Lifecycle Cost
Factor in not just material and labor cost at order, but maintenance, repainting, repair, and replacement over 10–30 years, especially at a sill, which sees more direct water exposure than almost any other trim element.Read more
Foamcore composite's low-maintenance profile delivers a lower total cost of ownership than wood or pre-cast concrete in virtually every scenario.
Frequently Asked Questions
What makes composite window sills superior to wood or PVC alternatives?
Composite foamcore sills combine a non-absorbent EPS core with a durable inorganic cement coating, so they are moisture-inert and won't rot or warp. Well-maintained wood windowsills in humid climates last 20–30 years; composite versions run 30–50+ years with minimal upkeep. The engineered cement coating is UV-stable and ready to accept primer and finish coats to suit, either exterior latex paint or a textured brush coat. PVC resists moisture but expands and contracts more than composite materials under temperature changes, which opens joints and breaks sealant over time, while composite foamcore products maintain near-zero joint expansion, keeping the weather seal intact.
How do I determine the correct window sill dimensions for my project?
Measure three things. Depth: from the inner edge to the drip edge, accounting for wall thickness plus 1–2 inches of overhang past the cladding so the drip falls clear. Sills provide a solid level base that supports the weight of the lower window frame, so depth must also accommodate the frame bearing surface. Height/thickness: match existing casing or masonry coursing, with profiles ranging from 3/4″ bottom thickness to 6″+ back height depending on the design. Browse profiles like The Cedara 4 inch Architectural Sill or The Ava 5.1875 inch Architectural Sill for specific dimensions. Slope: minimum 5°, ideally 6–10°, per IRC and ASTM E2112 standards. A 15-degree bevel on sills promotes water runoff for steeper applications.
Can your window sills be painted or stained after installation?
Composite foamcore sills with inorganic mineral-based cement coatings arrive with a UV-stable surface finish that mimics smooth-sanded wood or textured masonry. Primer and finish coats to suit are required, either exterior latex paint or a textured brush coat.
What installation methods work best for composite window sills?
Adhesive bonding to the substrate (brick, stone, stucco, ICF, siding) is the preferred technique for composite foamcore sills because it eliminates fastener penetrations that can become moisture entry points. Ensure correct slope during installation using shims or a sloped base assembly. Incorporate back dam flashing, end dams, and a continuous sill membrane lapped over the sheathing per ASTM E2112 detailing. The drip kerf must face outward with adequate projection. Seal all joints and end cuts with compatible sealants, and verify that the drainage path behind the window flange remains unobstructed. Watch installation videos for step-by-step guidance on specific profiles.
